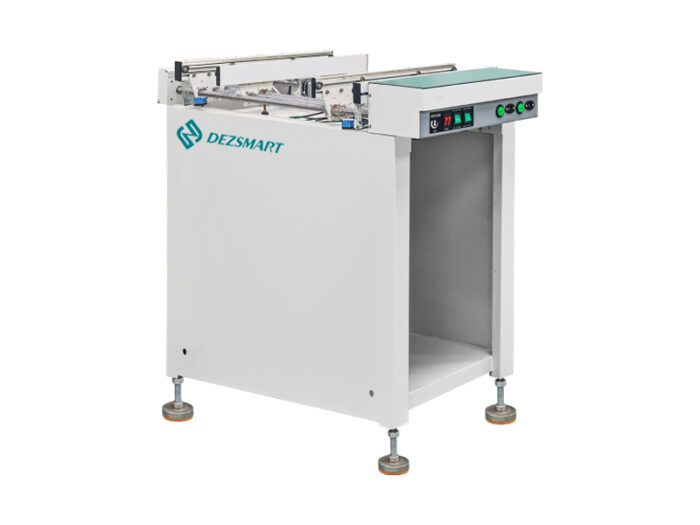

DUAL RAIL CONVEYOR

Dual-Rail Conveyor | Doubles PCB throughput, compatible with dual-lane SMT equipment. Features inspection/auto modes, SMEMA interface & customizable length/speed (0.5-20 M/min). Ideal for high-capacity SMT lines.DUAL RAIL CONVEYOR

1. Can you provide sample testing?
A: Yes. We support customers to provide PCB samples for free testing to ensure that the equipment meets your cleaning needs.

2. How long is the delivery cycle of the equipment?
A: The delivery cycle of standard models is [14-30 days], and customized models may take longer. The specific delivery time can be confirmed based on the order situation.

3. Does the equipment support non-standard customization?
A: Yes, we support non-standard customization and can provide personalized solutions based on your PCB size, cleaning requirements and production environment.

4.What does after-sales service include?
Lifetime technical support
Operation training
One-year warranty (except for wearing parts)
Quick response repair service

DUAL RAIL CONVEYOR

Features:

Dual-rail design, compatible with dual-lane SMT equipment.

Weighted design improves stability

Inspection mode and automatic mode

Inducing multi-zone position accuracy

Ergonomic design, make arms rest

Custom machine length according to customer’s requirement

Order the number of multi-zone upon request

Variable speed control

Compatible SMEMA interface

Technical parameters

Description: This equipment is used for the conveying and buffering operations of PCBs on an SMT production line.

Belt Type: Round belt or flat belt optional

Conveying Speed: 0.5-20 m/min

Power supply: AC 110 V or 220 V; Single-phase

Power : Max.100 VA

Conveying Height: 900 ± 20 mm or customer specified

Conveying Direction: Left-to-right (L-R) or right-to-left (R-L)

Specification Parameters

Model

PCB size(MM)

Weight(KG)

Dimension(L*W*H MM)

DEZ-050S-N 50*50-460*460 80 500*1046*900



DEZ-100M-N 50*50-460*460 95 1000*1046*900

Contact us to get a pricing quote

At ​​DEZ, we deliver ​​smart SMT equipment and solutions​​ to optimize your production, minimize defects, and maximize throughput. Whether you’re scaling production, upgrading equipment, or seeking higher yields, ​​DEZ is ready to offer help​​.
