Key Features:
High-resolution imaging with a 130mm * 130mm detection area.
Real-time monitoring and recording capabilities.
Customizable detection algorithms for specific requirements.
User-friendly interface with intuitive navigation.
Robust industrial computer with high-performance specifications.
Safe and reliable operation with radiation protection features.
Suitable for various electronic and semiconductor applications.
Technical Datasheet:

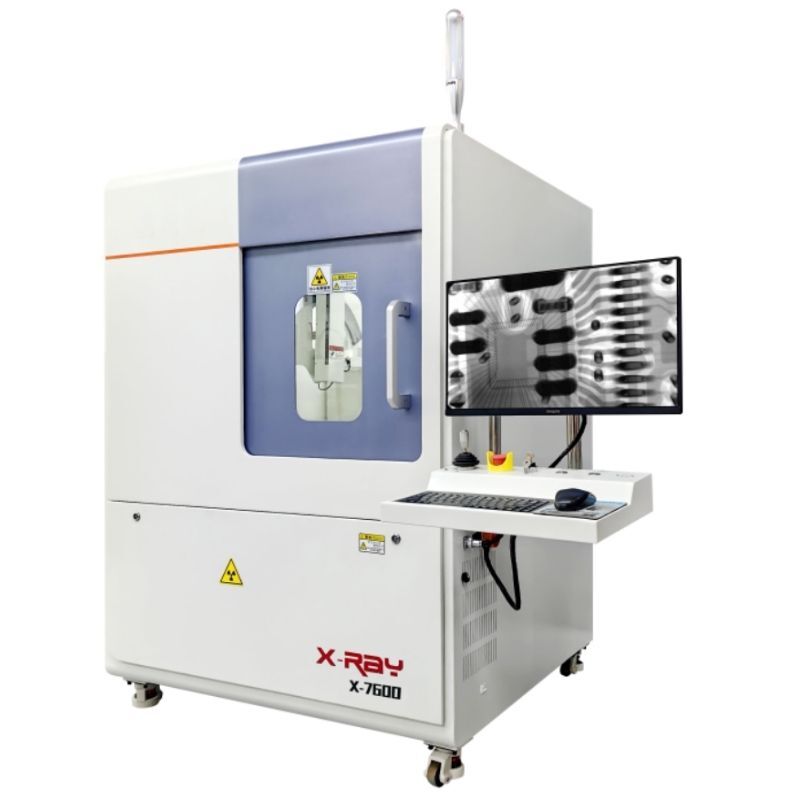

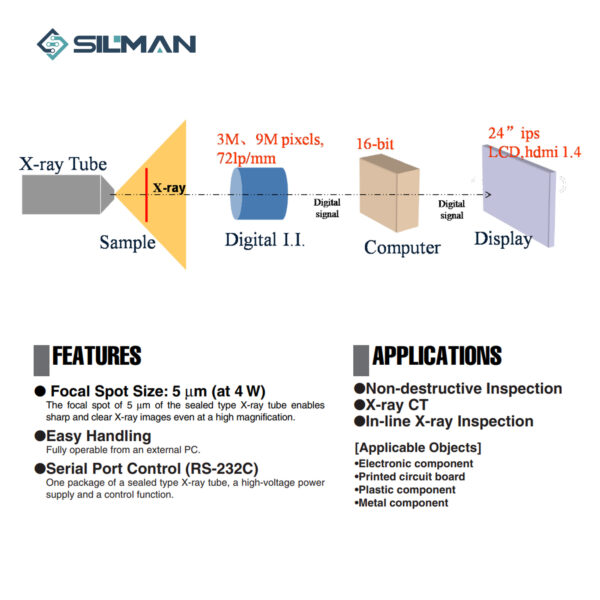

– X-ray Source:
– Brand: Hamamatsu, Japan
– Type: Closed Microfocus
– Voltage: 130kv
– Current: 10-300uA
– Focus Size: 5μm
– Max Power: 39W
– Imaging Unit:
– Brand: iRAY
– Type: Amorphous Silicon Flat Panel Detector
– Imaging Area: 130mm * 130mm
– Photosensitive Unit Size: 85μm
– Pixel Matrix: 1536 * 1536
– Resolution: 5.8Lp/mm
– Image Frame Rate: 20fps
– Tilt Angle: 0-90¡ã viewing angle (45¡ã to the left and right)
– Magnification Ratio: Geometric magnification of 150 times
– Computer Host:
– Brand: Advantech Industrial Computer
– Configuration: CPU: I5 7700, RAM: 8G, HDD: 1TB
– Monitor: 24″ FHD LCD Display
– Loading Platform:
– Loading Area: 520mm * 520mm
– Max Inspection Area: 510mm * 450mm
– Motion Travel (Z-axis): Detection Panel Z1=300mm, X-ray Source Z2=300mm
– Motion Travel (X-axis): * axis=510mm, Y axis=450mm
– Max Sample Weight: 12kg
– Movement Control Method: Joystick, Mouse, and Keyboard
– Navigation System:
– Configuration: Hikvision High Definition Camera
– Software System:
– Independently developed with proprietary software intellectual property
– Functions: Automatic image setting, automatic navigation, calculation feature, customizable detection algorithms, location editing functionality
– Machine Parameters:
– Weight: Approximately 1650Kg
– Power Supply: 220V/50Hz
– Max Power: 2.0KW
– Equipment Dimensions: 1400mm(L) * 1350mm(W) * 1750mm(H)
– Radiation Leakage Dose: <0.5μSv/h
– X-ray Safety: Radiation leakage dose <0.5μSv/h, protective material of the casing composed of a steel-lead-steel structure, front door window uses leaded glass for radiation protection, safety interlock feature, status indicator lights, exemption filing for radioisotopes and radiation devices
– Configuration List:
– X-ray Source: 1 set (Hamamatsu, Japan, Closed Microfocus X-ray Source 130KV)
– Imaging Unit: 1 pcs (iRAY, Amorphous Silicon Flat Panel Detector 130mm * 130mm)
– Computer Host: 1 pcs (Advantech Industrial Computer)
– Monitor: 1 pcs (24-inch HD Monitor)
– Precision Control Components: 1 set (Googol Motion Control Card, Motor, etc.)
– Lead Room and Motion Parts: 1 set (Own Rights)
– Software: 1 set (Own Rights)
