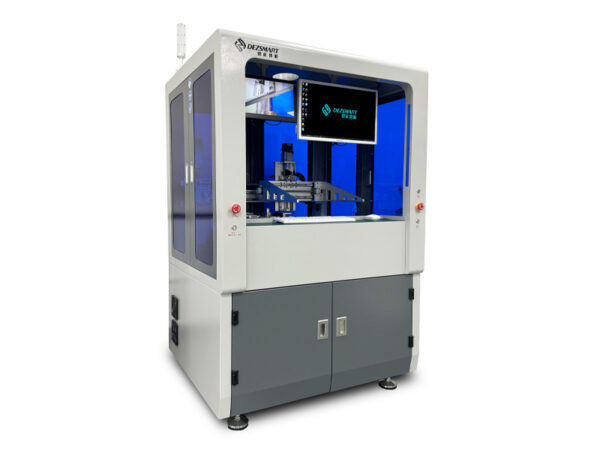

DEZ-H3500A Selective Wave Soldering Machine

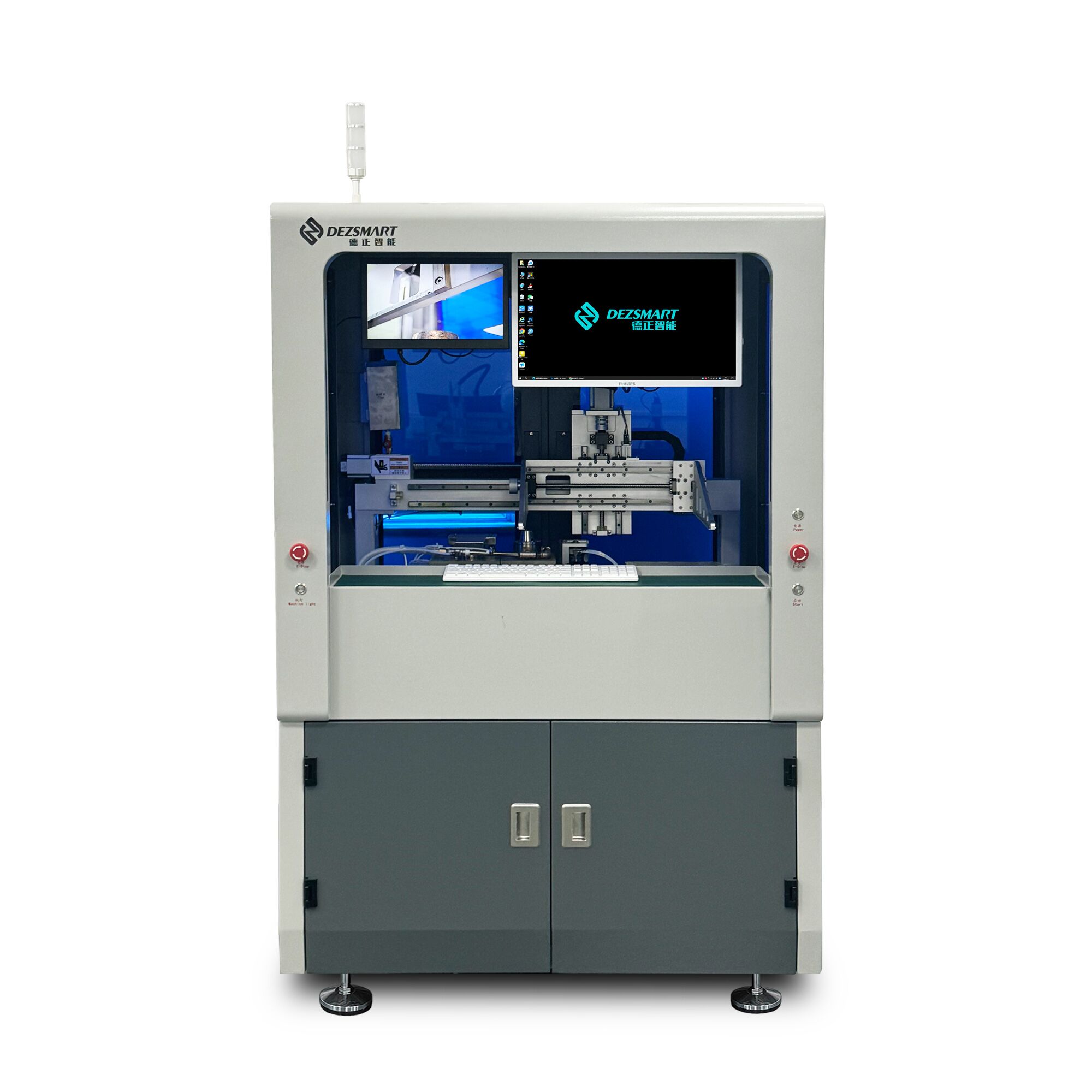

DEZ-H3500A Selective Wave Soldering Machine - Image 2

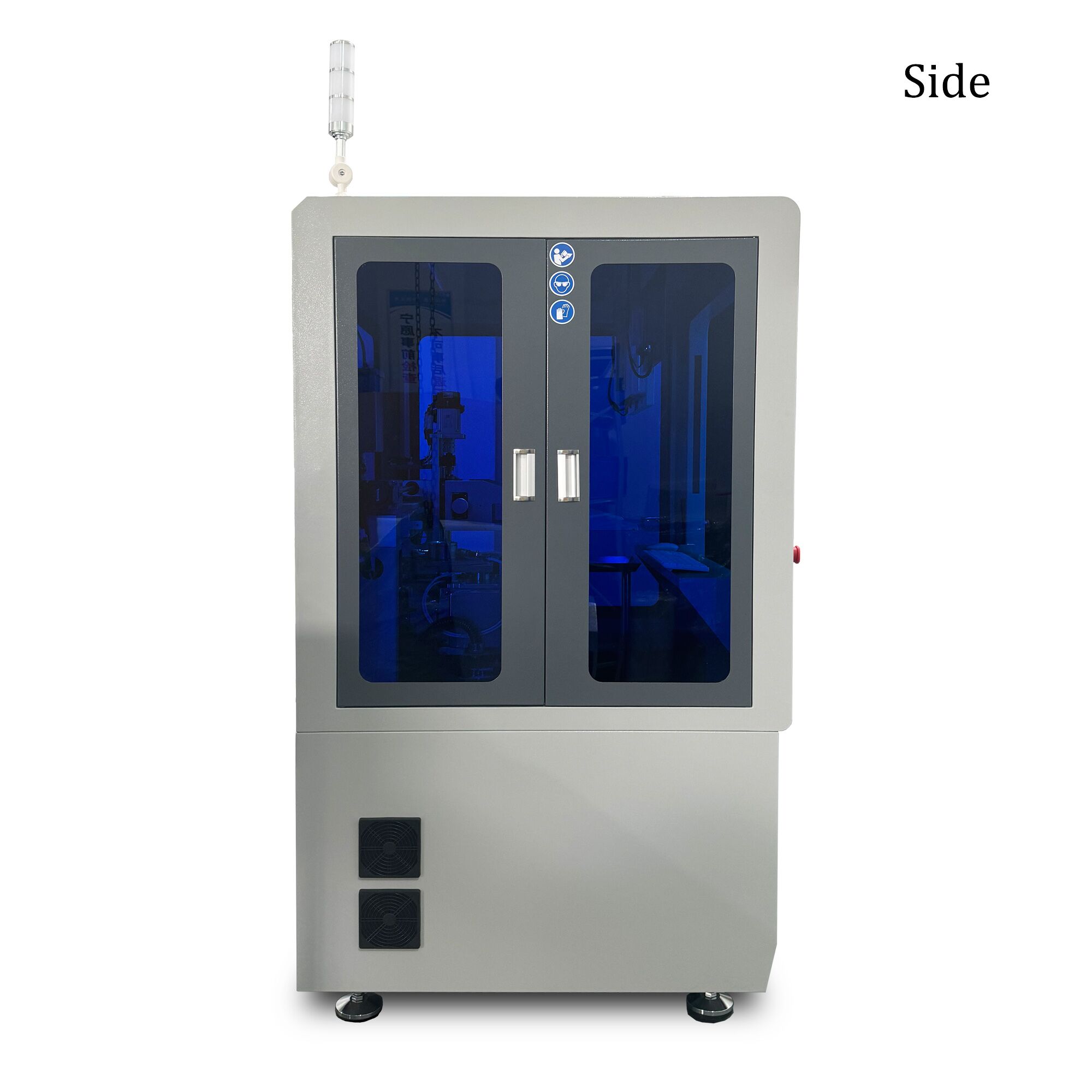

DEZ-H3500A Selective Wave Soldering Machine - Image 3

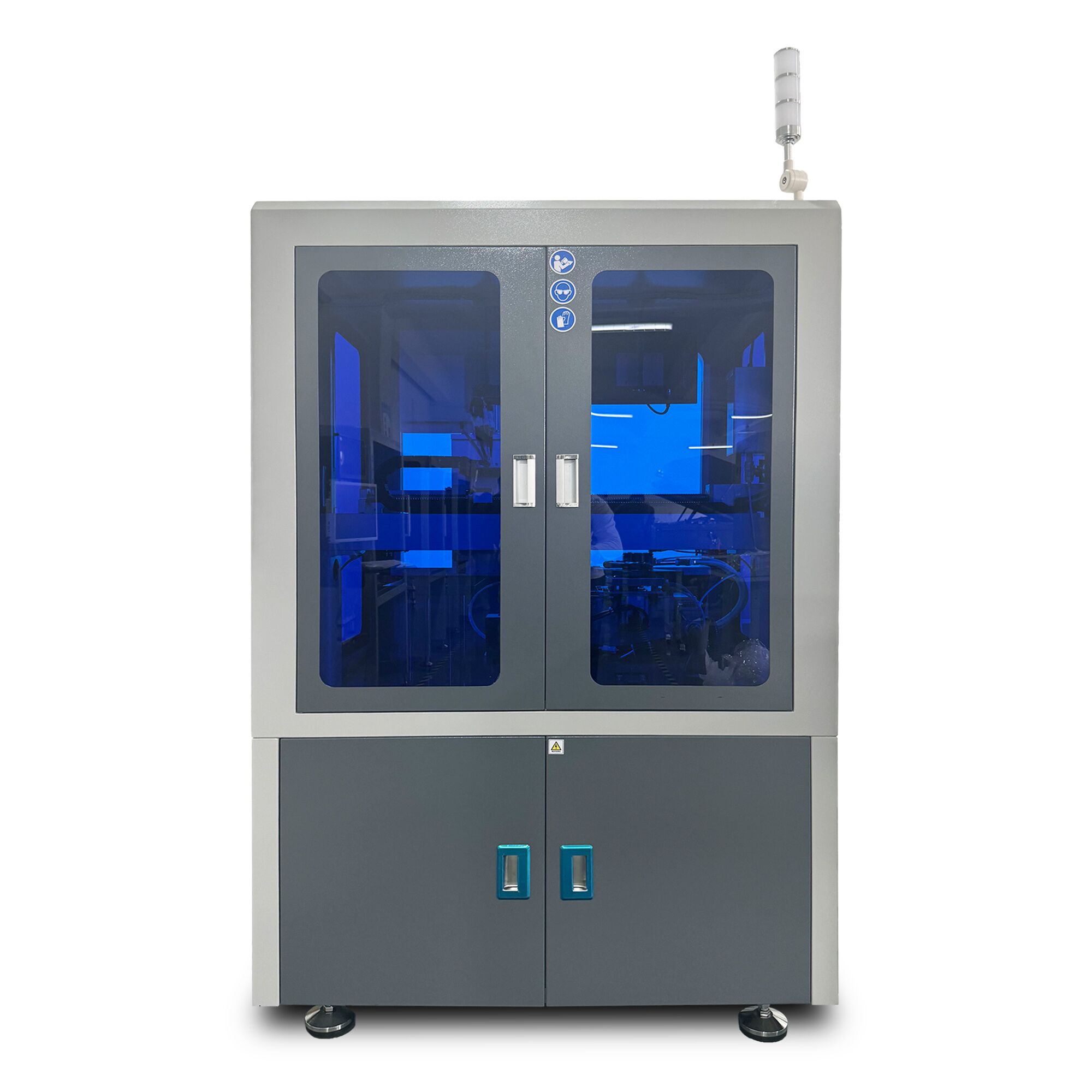

DEZ-H3500A Selective Wave Soldering Machine - Image 4

DEZ-H3500A Selective Wave Soldering Machine

The DEZ-H3500A is a selective wave soldering machine designed for high-quality soldering of PCBs. It offers a compact and fully functional design, ensuring high productivity and flexibility.

FAQ

1. Can you provide sample testing?
A: Yes. We support customers to provide PCB samples for free testing to ensure that the equipment meets your cleaning needs.

2. How long is the delivery cycle of the equipment?
A: The delivery cycle of standard models is [14-30 days], and customized models may take longer. The specific delivery time can be confirmed based on the order situation.

3. Does the equipment support non-standard customization?
A: Yes, we support non-standard customization and can provide personalized solutions based on your PCB size, cleaning requirements and production environment.

4.What does after-sales service include?
Lifetime technical support
Operation training
One-year warranty (except for wearing parts)
Quick response repair service

1. Product Overview

The DezSmart DEZ-H3500A is a advanced 3-axis (3-axis linkage) selective wave soldering machine designed for high-precision PCB (Printed Circuit Board) welding. As an all-in-one offline model, it integrates selective fluxing and soldering functions on a compact XYZ motion table, making it ideal for space-constrained production environments .

Controlled entirely by an industrial PC, all parameters—including soldering temperature, flux type, movement path, and nitrogen temperature—can be set, saved, and traced via software, ensuring consistent and repeatable welding quality . Its flexible design allows seamless integration beside production lines, adapting easily to diverse manufacturing setups .

2. Application Scope

The DEZ-H3500A excels in scenarios requiring precise, selective soldering, making it indispensable across electronics manufacturing sectors:

Consumer Electronics: Welding PCBs in smartphones, laptops, and wearables.
Automotive Electronics: Handling complex circuit boards in car infotainment systems and sensors.
Industrial Electronics: Assembling control panels and communication equipment with dense component layouts.
Medical Devices: Ensuring reliable solder joints in precision medical instruments.

It supports PCBs of varying thicknesses (0.2mm–6mm) and maximum sizes up to L350×W410mm (customizable for larger boards), catering to diverse production needs .

3. Working process

The DEZ-H3500A excels in scenarios requiring precise, selective soldering, making it indispensable across electronics manufacturing sectors:

Consumer Electronics: Welding PCBs in smartphones, laptops, and wearables.
Automotive Electronics: Handling complex circuit boards in car infotainment systems and sensors.
Industrial Electronics: Assembling control panels and communication equipment with dense component layouts.
Medical Devices: Ensuring reliable solder joints in precision medical instruments.

It supports PCBs of varying thicknesses (0.2mm–6mm) and maximum sizes up to L350×W410mm (customizable for larger boards), catering to diverse production needs .

4. Core Advantages

The DEZ-H3500A stands out with features that redefine efficiency and precision in selective soldering:

All-in-One Compact Design: Combines fluxing and soldering on a single XYZ platform, saving space compared to separate systems .
Superior Welding Quality: Titanium-alloy solder pots with uniform heat transfer (via external heating plates) and nitrogen heating reduce oxidation, ensuring strong, consistent joints .
Full Traceability: PC-based control stores all parameters (temperature, speed, path) in configurable files, enabling easy quality tracking and repeatability .
Precise Motion Control: 3-axis stepper motors with ball screws and linear guides ensure ±0.1mm positioning accuracy, low noise, and smooth movement—critical for dense PCB layouts .
Flexible Production Integration: Can be placed beside lines for on-demand welding, adapting to dynamic production schedules better than rigid inline systems .

5. Product Structure

The DEZ-H3500A’s robust structure combines key systems for reliable performance:

Control System: Industrial all-in-one PC with Windows 10-based software, enabling path programming via PCB images and real-time monitoring of critical parameters (temperature, pressure, speed) .
Motion System: Lightweight 3-axis (X, Y, Z) platform with stepper motors and drivers, ensuring fast, stable movement .
Fluxing System: Includes a jet valve (adapting to various fluxes) and a stainless steel pressure tank for consistent application .
Soldering System: Features a leak-proof titanium-alloy solder pot, 5 standard alloy nozzles (customizable), and an inline nitrogen heater to enhance wetting and reduce dross .
Machine Chassis: Steel-welded frame with a thick base plate, minimizing vibration for stable operation .

6.Work Case

A leading automotive electronics manufacturer adopted the DEZ-H3500A for welding sensor PCBs with dense components:

Challenge: Traditional wave soldering caused bridging (unwanted connections) on small-pitch pins.
Solution: The DEZ-H3500A’s selective nozzles targeted only required (solder joints), with programmable parameters ensuring precise flux and solder application.
Result: Defect rates dropped by 35%, while nitrogen integration reduced solder dross by 40%, cutting material costs.

The DezSmart DEZ-H3500A redefines selective wave soldering with its compact design, traceable controls, and precision engineering—ideal for electronics manufacturers seeking quality, flexibility, and efficiency.

To elevate your PCB welding process, visit www.dezsmt.com for more details or to request a demo.

Machine name	DEZ-H3500A

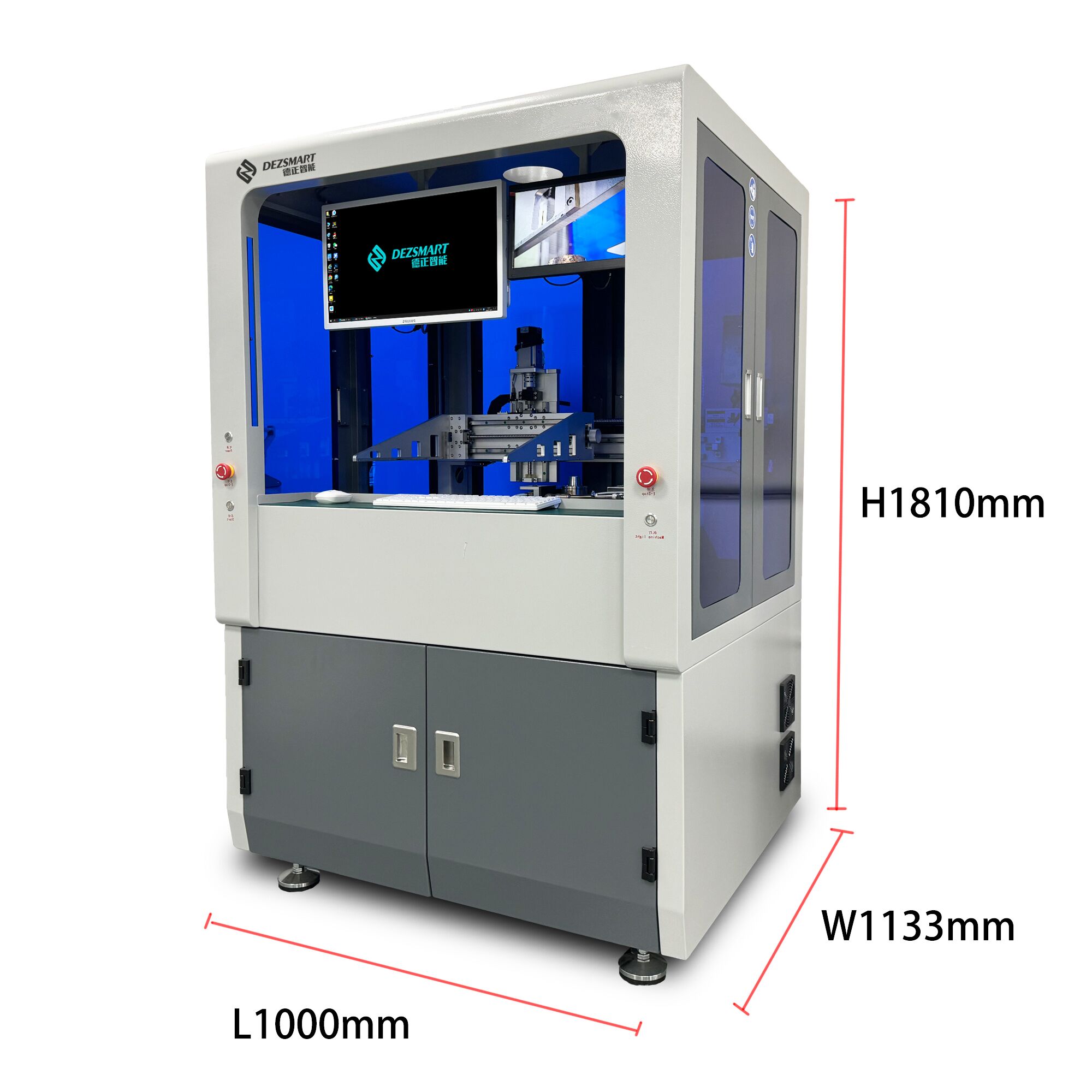

dimension	L1000mm X W1133mm X H1810mm
general power	3kw
consumption power	1kw
power supply	220V 50HZ
net weight	380KG
reuiqred air source	3-5 Bars
required air flow	8-12L/min
required N2 pressure	3-4 Bars
required N2 flow	More than 2m³/hour
N2 purity	>99.998%
carrier	Can be used as needed
max solder area	L350 X W410mm (customizable size)
PCB thickness	0.2mm—–6mm
pcb edge	3mm or more
controlling	Industrial PC
Loading board	Manual
Unloading board	Manual
Operating height	900+/-30mm
conveyor up clearance	No restrictions
conveyor bottom clearance	30MM
motion axis	X, Y, Z
motion control	Stepping
position accuracy	+ / – 0.1 mm
chassis	Steel structure welding
flux nozzle	Injection valve
flux tank capacity	1L
flux tank	Flux box
standard pot number	1
solder pot capacity	10~15 kgs/furnace
Temperature range	PID
melting time	30–40 Minutes
max temperature	350 C
solder heater	1.2kw
nozzle dim	Customizable shapes
material	alloy steel
Equipped nozzle	Standard 5 per furnace
N2 heater	Standard
N2 temp range	0 – 350 C
N2 consumption	1—2m³/hour/tin nozzle
