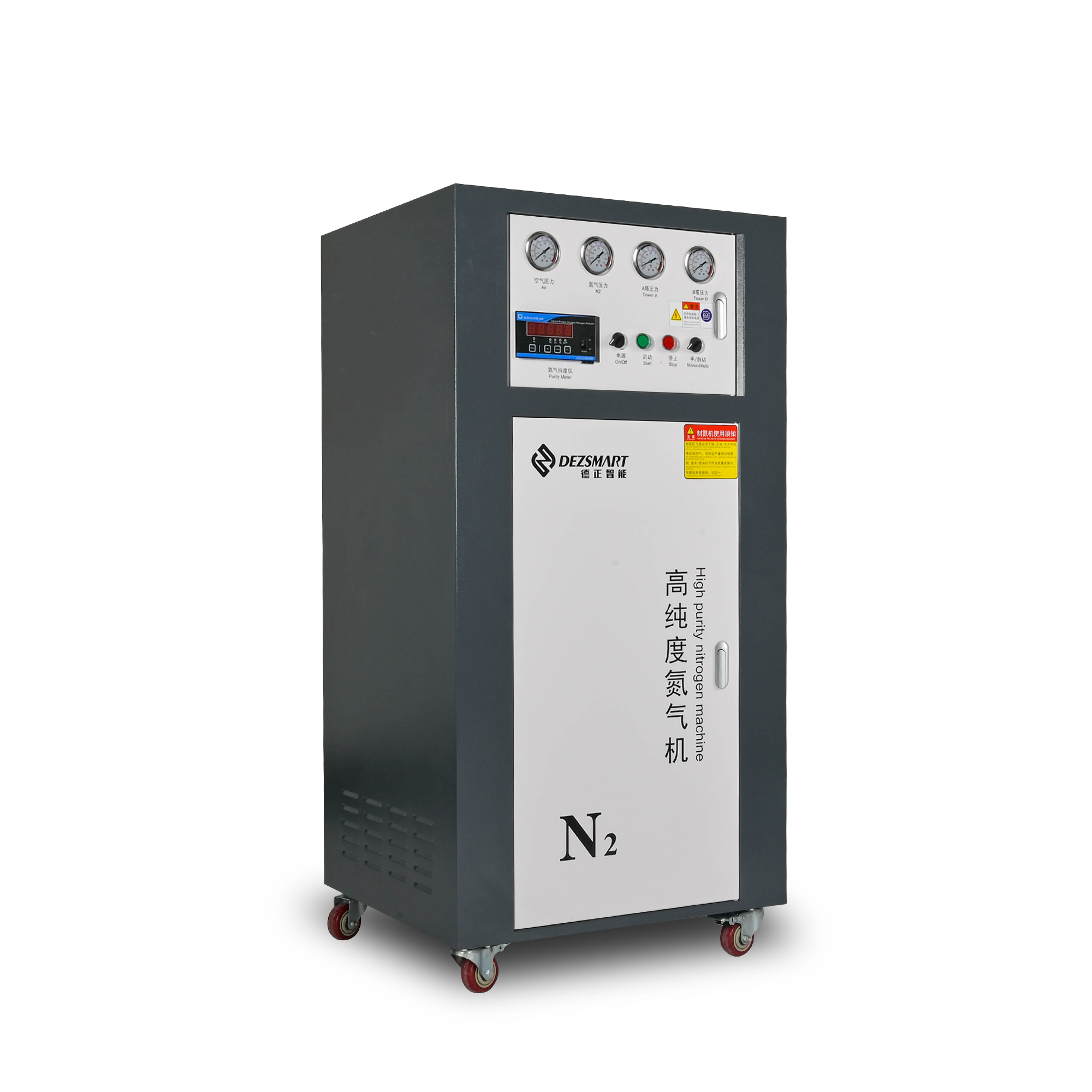

DEZ-D59-2N Nitrogen Generator

DEZ-D59-2N Nitrogen Generator - Image 2

DEZ-D59-2N Nitrogen Generator - Image 3

DEZ-D59-2N Nitrogen Generator - Image 4

DEZ-D59-2N Nitrogen Generator

The DEZ-D59-2N is a nitrogen generator designed to produce high-purity nitrogen gas. It uses advanced gas separation technology to provide a reliable and efficient source of nitrogen for various industrial applications.

FAQ

1. Can you provide sample testing?
A: Yes. We support customers to provide PCB samples for free testing to ensure that the equipment meets your cleaning needs.

2. How long is the delivery cycle of the equipment?
A: The delivery cycle of standard models is [14-30 days], and customized models may take longer. The specific delivery time can be confirmed based on the order situation.

3. Does the equipment support non-standard customization?
A: Yes, we support non-standard customization and can provide personalized solutions based on your PCB size, cleaning requirements and production environment.

4.What does after-sales service include?
Lifetime technical support
Operation training
One-year warranty (except for wearing parts)
Quick response repair service

1. Product Overview

The DEZ-D59-2N nitrogen generator, developed by Shenzhen DEZSmart Technology Co., Ltd., is a cutting-edge gas separation device based on Pressure Swing Adsorption (PSA) technology. It utilizes high-performance carbon molecular sieves (CMS) to separate nitrogen and oxygen from air, leveraging the difference in adsorption capacity of gas molecules.

Key technical specifications make it stand out:

Nitrogen Purity: Up to 99.999%, with real-time digital monitoring for instant purity checks.
Flow Rate: 3Nm³/h (under standard atmospheric pressure), ensuring stable gas supply.
Pressure Control: Adjustable between 0.1-0.65Mpa (max. 0.8Mpa, customizable).
Energy Efficiency: Low power consumption of 200W, suitable for long-term operation.
Compact Design: Space-saving dimensions of 9504101260mm (customizable size available), with a sealed cabinet structure for safe and dust-free operation.

2. Application Scope

Thanks to its high purity, stability, and inert properties, the DEZ-D59-2N nitrogen generator is widely used across industries:

Electronics Manufacturing: Protects sensitive components (e.g., chips, circuit boards) from oxidation during soldering or storage.
Food & Beverage: Extends shelf life of packaged foods (snacks, baked goods) by replacing oxygen to prevent spoilage.
Laboratories & Research: Provides inert environments for chemical reactions, material testing, or sample preservation.
Chemical Industry: Serves as a protective gas in synthesis processes to avoid unwanted reactions with oxygen.
Metallurgy: Prevents oxidation during metal heat treatment or welding.

3. Working process

The DEZ-D59-2N operates through a cyclic PSA process with alternating A and B towers, ensuring continuous nitrogen production:

Air Intake: Clean, oil-free, and dry compressed air (0.6-0.8Mpa, dew point ≤-10℃) enters the system.
Adsorption Phase: Tower A starts pressurizing. Carbon molecular sieves in the tower adsorb oxygen, carbon dioxide, and moisture, allowing nitrogen to pass through.
Alternating Operation: When Tower A reaches saturation, Tower B takes over the adsorption process, while Tower A undergoes desorption (releasing adsorbed gases like oxygen through exhaust, producing normal operational noise).
Nitrogen Output: Nitrogen pressure gradually rises to 0.6Mpa. Once stable, the nitrogen outlet is opened, and purity improves as the system circulates.
Shutdown: Close nitrogen outlets and air intake, press the stop button, and keep the system at maximum pressure to ensure quick purity recovery on next startup.

4. Core Advantages

What makes the DEZ-D59-2N a top choice?

Ultra-High Purity: 99.999% nitrogen purity meets strict industrial standards, outperforming many low-purity (95-99%) generators on the market.
Energy & Cost Efficiency: 200W low power consumption reduces electricity costs, while the PSA process eliminates the need for expensive raw materials (e.g., liquid nitrogen).
Easy Operation & Maintenance: Simple start/stop procedures, real-time purity display, and minimal upkeep (e.g., replacing precision filters every 3-6 months, carbon molecular sieves every 3-6 years).
Customization: Flexible options for pressure (up to 0.8Mpa), size, and voltage (standard AC220V 50-60Hz, customizable), adapting to diverse industrial needs.
Durability & Support: 12-month warranty, 8-10 years of service life, and professional after-sales support, ensuring long-term reliability.

5. Product Structure

The DEZ-D59-2N features a compact, sealed cabinet design integrating key components:

a.Dual Towers (A & B):

Filled with high-performance carbon molecular sieves for alternating adsorption/desorption.

b.Control System:

Includes a power switch, nitrogen detector, and pressure monitors for automated operation.

c.Gas Interfaces:

Inlet for compressed air, outlet for nitrogen, and exhaust for waste gases.

d.Purity Monitor:

Real-time digital display to track nitrogen purity instantly.

e.Filtration System:

Removes oil (≤0.002PPM) and dust (≤0.01PPM) from compressed air, protecting the sieves and ensuring gas quality.

6.Work Case

Electronics Factory: A leading semiconductor manufacturer uses the DEZ-D59-2N to maintain a 99.999% nitrogen environment during chip packaging, reducing defect rates by 30% compared to previous low-purity systems.
Food Packaging Plant: A bakery adopted the generator for snack packaging, extending product shelf life from 7 days to 30 days by replacing oxygen with pure nitrogen, cutting waste by 40%.
Laboratory: A chemical research lab relies on the DEZ-D59-2N to provide inert conditions for sensitive reactions, ensuring consistent results and eliminating risks of oxidation.

The DEZ-D59-2N high purity PSA nitrogen generator combines advanced technology, efficiency, and reliability, making it an ideal solution for industries requiring stable, high-quality nitrogen. Whether for electronics, food, research, or chemicals, it delivers cost-saving performance with minimal maintenance.

Choose DEZ-D59-2N for your nitrogen needs—experience the difference in purity, efficiency, and durability. Contact Shenzhen DEZSmart Technology today to learn more!

Name	Parameter	Remarks
Equipment Model	DEZ-D59-2N
Standard Flow Rate	3Nm³/h	N standard atmospheric pressure
Nitrogen Purity	99.999%
Nitrogen Pressure	0.1-0.65MPa	Controllable
Maximum Nitrogen Pressure	0.8MPa	Other customizable
Operating Voltage	AC220V: 50Hz-60Hz	Other customizable
Equipment Power	200W/0.2KW
Equipment Dimensions	9504101260mm	Other customizable
Nitrogen Temperature	≤10-25°C	Based on ambient temperature
Nitrogen Dew Point	≤-40°C	Compressed air must be pure
Nitrogen Oil Content	≤0.002PPM
Nitrogen Dust Content	≤0.01PPM or less	Other customizable
Feed Air Pressure	0.6-0.8MPa	Air compressor
Feed Air Dew Point	≤-10°C
System Pressure Differential	≤0.15MPa
Maximum Pressure Loss	≤0.18MPa
Operating Environment	-10°C-50°C
Purity Display	Real-time digital display
Main Nitrogen Generator Model	Enclosure seal
