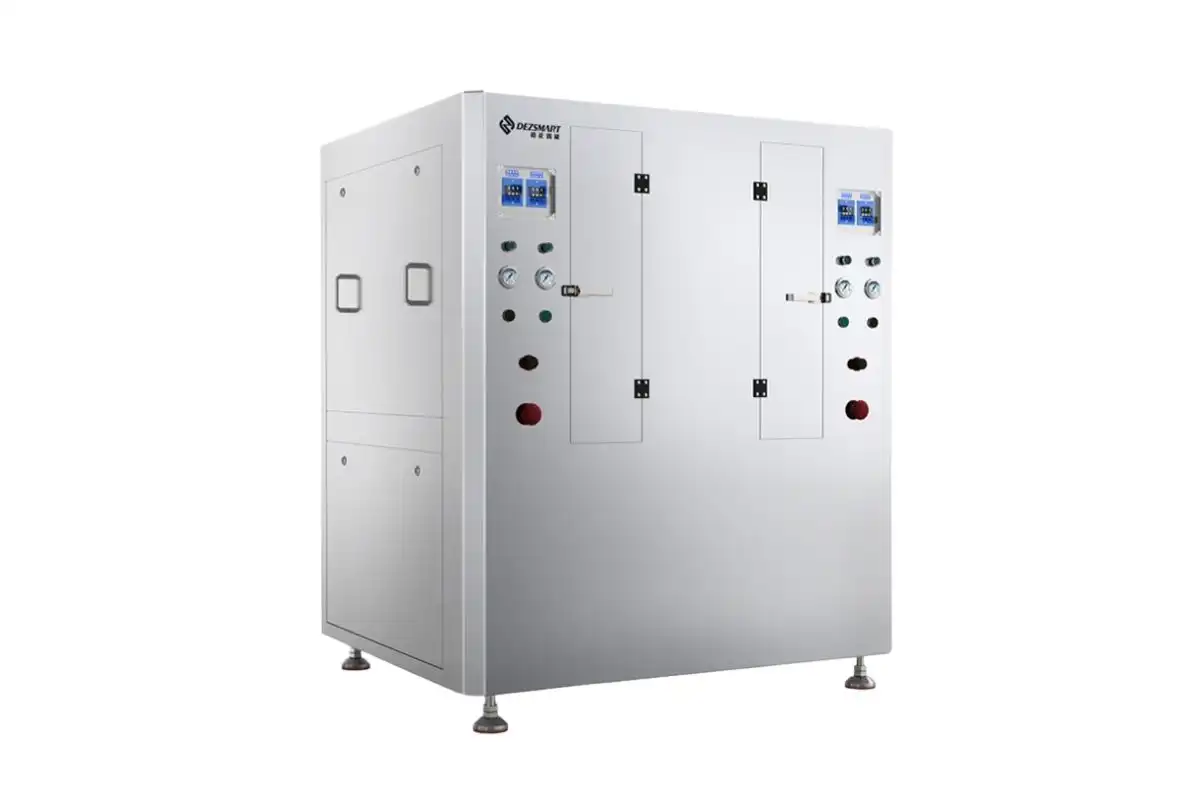

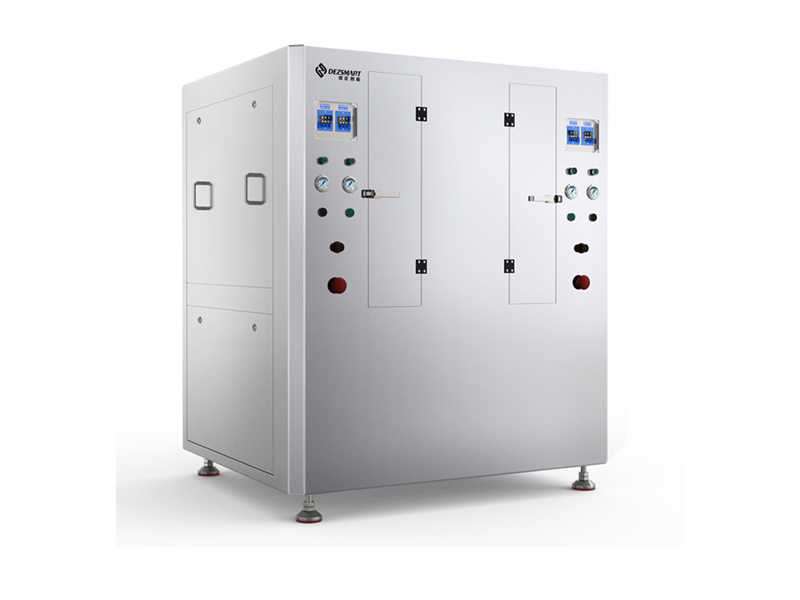

DEZ-C780 Pneumatic Stencil Cleaning Machine

The DEZ-C780 is a fully pneumatic double-slot steel mesh cleaning machine designed for cleaning various types of meshes. It offers efficient cleaning and drying, ensuring consistent results and improved productivity.

FAQ

1. Can you provide sample testing?
A: Yes. We support customers to provide PCB samples for free testing to ensure that the equipment meets your cleaning needs.

2. How long is the delivery cycle of the equipment?
A: The delivery cycle of standard models is [14-30 days], and customized models may take longer. The specific delivery time can be confirmed based on the order situation.

3. Does the equipment support non-standard customization?
A: Yes, we support non-standard customization and can provide personalized solutions based on your PCB size, cleaning requirements and production environment.

4.What does after-sales service include?
Lifetime technical support
Operation training
One-year warranty (except for wearing parts)
Quick response repair service

Key Features:
Fully pneumatic operation with no electricity required, ensuring safety.
Side wall air intake and drying design for efficient operation.
Humanized design with one-touch operation and automatic filling and discharging functions.
Replaceable modular controller and quick-plug design for easy maintenance.
Three-stage filtration system for solvent recycling and low liquid consumption.
High-density isobaric double-sided rotating cleaning nozzle for strong cleaning power.
System integration of global high-quality control components for stable performance.
All stainless steel body for durability and environmental compliance.

Technical Datasheet:
– Stencil Size:
– Maximum: 750mm(L) * 750mm(W) * 40mm(H)
– Special sizes need to be customized
– Cleaning Liquid Capacity:
– Maximum: 40L*2
– Optimal Usage: 30L
– Cleaning Method:
– 360¡ã rotating double-sided equal pressure jet roll high-pressure jetting (cleaning ¡ú drying)
– Time:
– Cleaning Time: 2-8 minutes (conventional process)
– Blow-Drying Time: 2-8 minutes (conventional process)
– Air Source:
– External Air Source: 0.5Mpa to 0.6Mpa
– Filtration:
– Three-stage filtration
– Level 1: 10μm (filters debris and labels)
– Level 2: 5μm (ink impurities, silver paste)
– Level 3: 1μm (filter tiny particles)
– Exhaust Port:
– Size: ¦µ125(W) * 25mm(H)2
– Machine Weight:
– Net Weight: Approximately 500kg
– Machine Size:
– Dimensions: 1480mm(L) * 1050mm(W) * 1730mm(H)
– Compressed Air:
– Consumption: 400-600L/Min2

Contact us to get a pricing quote
