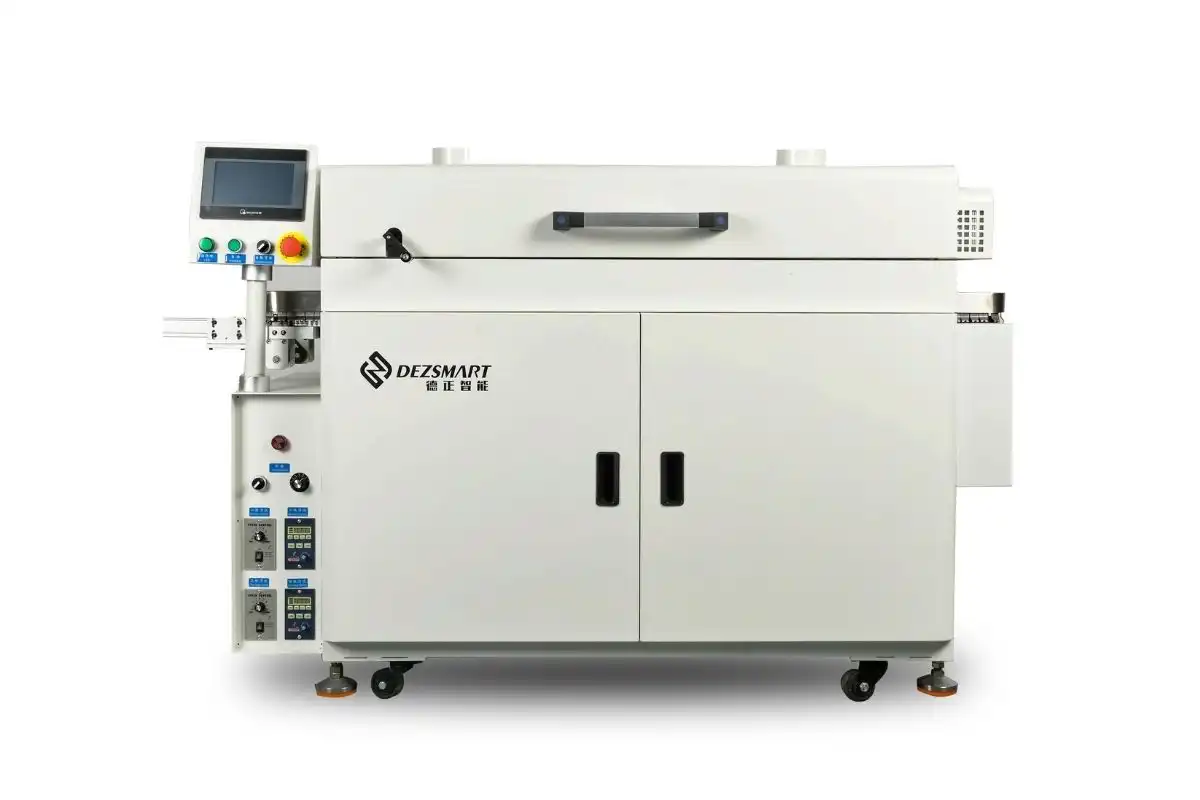

DEZ-C758 PCBA Fully Automatic Single Side Cleaning Machine

The DEZ-C758 is a fully automatic PCBA cleaning machine designed for single-sided cleaning of PCBA boards. It offers efficient cleaning with minimal contact, ensuring high cleanliness and productivity.

FAQ

1. Can you provide sample testing?
A: Yes. We support customers to provide PCB samples for free testing to ensure that the equipment meets your cleaning needs.

2. How long is the delivery cycle of the equipment?
A: The delivery cycle of standard models is [14-30 days], and customized models may take longer. The specific delivery time can be confirmed based on the order situation.

3. Does the equipment support non-standard customization?
A: Yes, we support non-standard customization and can provide personalized solutions based on your PCB size, cleaning requirements and production environment.

4.What does after-sales service include?
Lifetime technical support
Operation training
One-year warranty (except for wearing parts)
Quick response repair service

Key Features:
Suitable for traditional board washing water, eliminating manual contact.
Multi-directional brushing for thorough cleaning.
Adjustable brush height and speed for different cleaning needs.
Automatic waste collection for easy maintenance.
Easy to use with a 220V power supply.
Reduces nozzle scrapping costs and improves SMT productivity.
Fully automatic cleaning process.
Reduces product defect rates and improves SMT productivity.

Technical Datasheet:
– Dimensions:
– Machine Size: L1860 * W850 * H1200mm ±20mm
– Weight: 400KG
– PCB Specifications:
– Width (Adjustable): 50-300mm
– Height (Adjustable): 750±50mm
– Speed: 0-1800mm/Min
– Direction: L¡úR/ R¡úL (Optional)
– Component Height Restrictions: Max135mm
– Cleaning:
– Coating Roller Size: φ100mm
– Disc Brush Size: φ300
– Brush Height Adjustment Range: 0-20mm adjustable
– Applicable Cleaning Agent Type: Environmentally friendly cleaners
– Dry Way: Air drying
– Liquid Storage Tank Capacity: Max 20 L
– Cleaning Agent Flow Rate: 50-1500ml/min
– Complete Machine Control Method: PLC+button
– Power Supply: 2 Phase 3 wires
– Total Power: 1KW
– Working Consumption: 0.4KW
– Transport Connection Height: 750±20mm
– Exhaust Volume Requirements: 10M3/min (Tunnels)
– Spindle Speed: 0-500 rpm (continuously variable)
– Working Voltage: 220V 50HZ
– Transmission Speed: 0.05-1.8m/min
