C756 Automatic Spray Fixture Cleaning Machine

C756 Automatic Spray Fixture Cleaning Machine - Image 2

C756 Automatic Spray Fixture Cleaning Machine - Image 3

C756 Automatic Spray Fixture Cleaning Machine

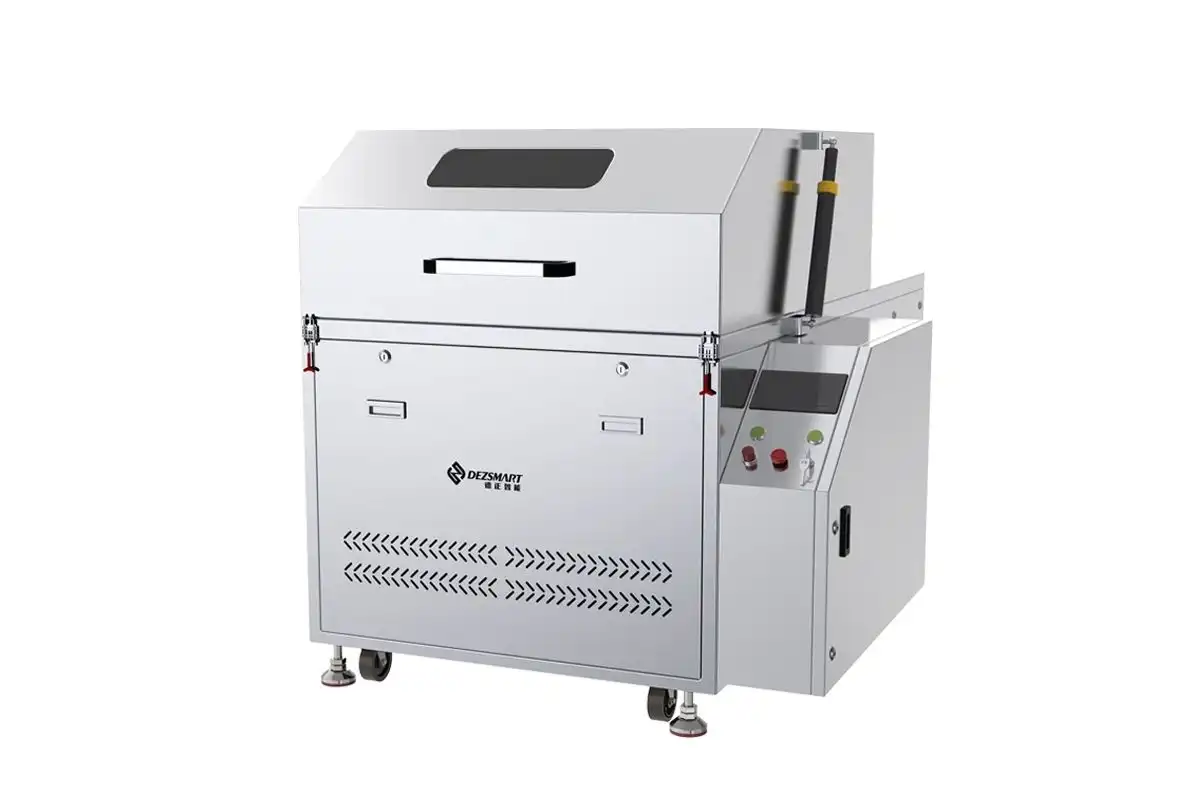

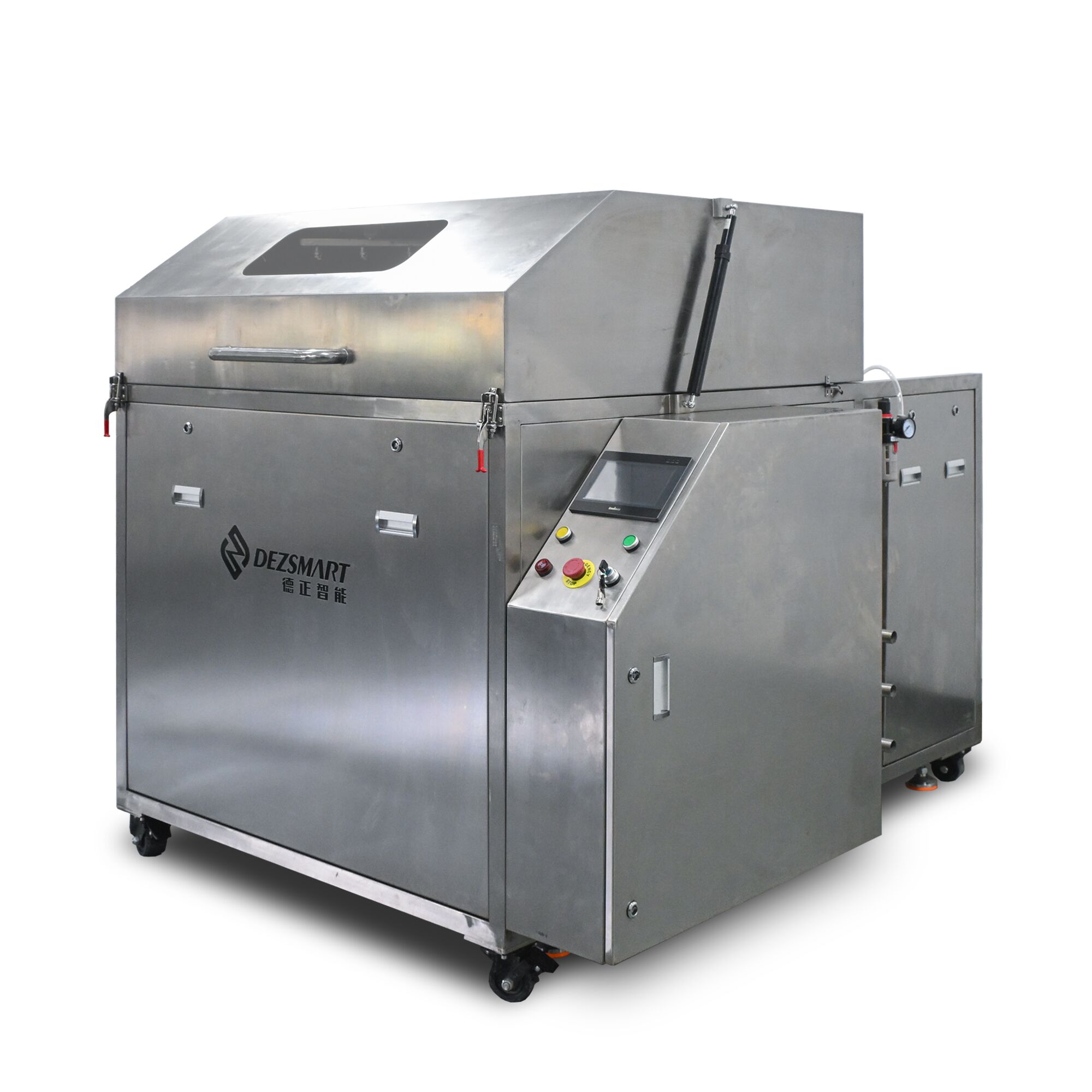

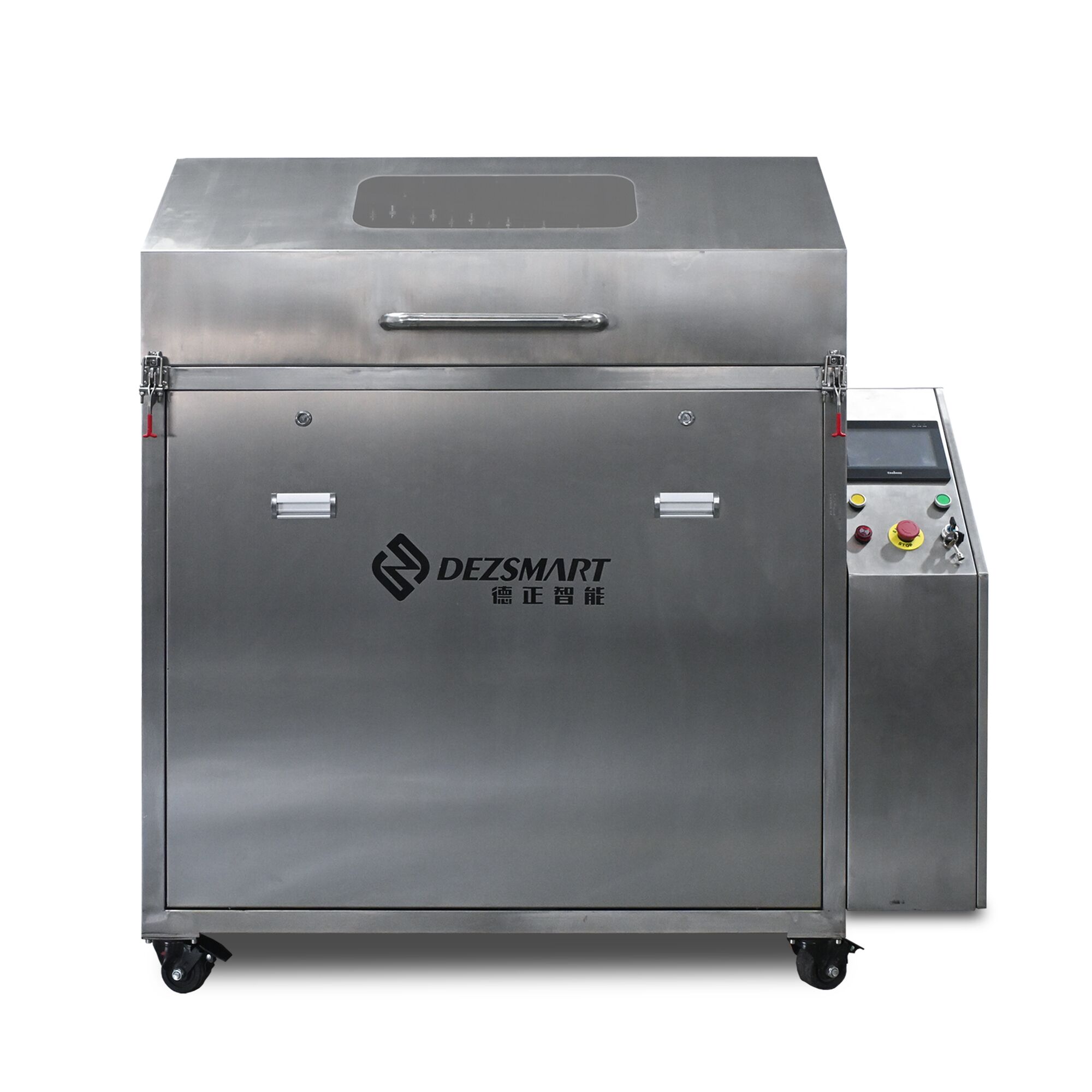

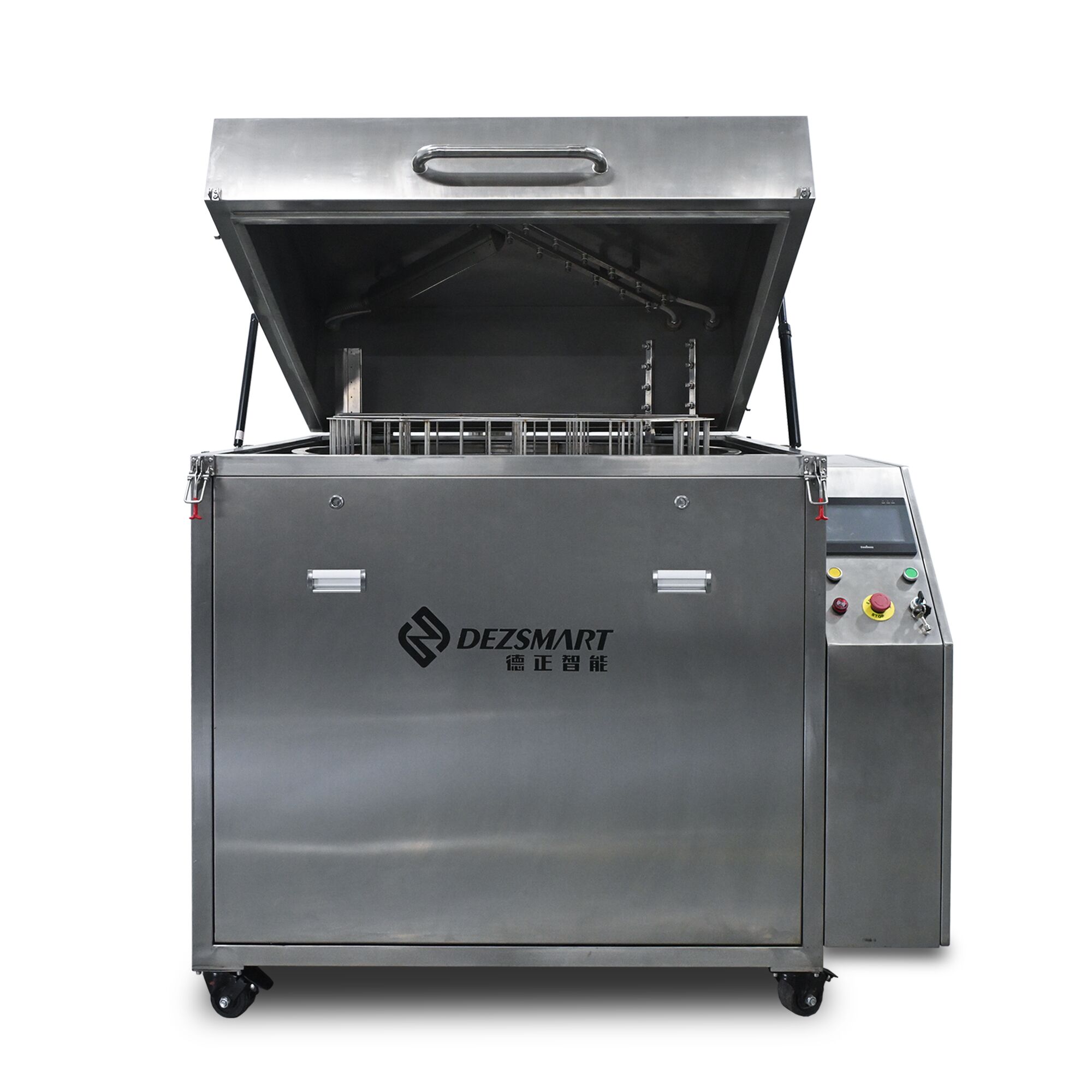

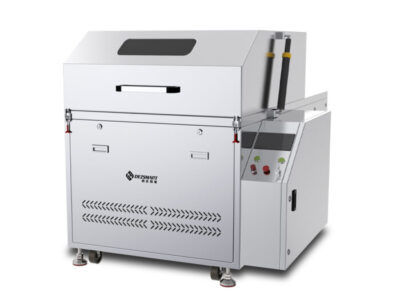

The DEZ-C756 is an automatic spray fixture cleaning machine designed for cleaning various workpieces. It offers high-pressure spray cleaning, rinsing, and drying, ensuring thorough cleaning and reduced downtime.

FAQ

1. Can you provide sample testing?
A: Yes. We support customers to provide PCB samples for free testing to ensure that the equipment meets your cleaning needs.

2. How long is the delivery cycle of the equipment?
A: The delivery cycle of standard models is [14-30 days], and customized models may take longer. The specific delivery time can be confirmed based on the order situation.

3. Does the equipment support non-standard customization?
A: Yes, we support non-standard customization and can provide personalized solutions based on your PCB size, cleaning requirements and production environment.

4.What does after-sales service include?
Lifetime technical support
Operation training
One-year warranty (except for wearing parts)
Quick response repair service

1. Product Overview

The Dez Smart DEZ-C756 automatic jig & fixture cleaning machine is a high-performance, water-based cleaning solution designed to streamline industrial workpiece maintenance. From wave soldering fixtures and reflow soldering trays to condensers and machine parts, it efficiently removes flux, oil, dust, and other contaminants through a fully automated process—no manual intervention required once initiated.

Equipped with advanced technologies like high-pressure spray cleaning, high-pressure rinsing, high-pressure air shearing, and large-flow hot air drying, the DEZ-C756 ensures thorough cleaning and immediate usability of workpieces post-treatment. Its compact design (L1860W1500H1600mm) and all-stainless steel structure (304 grade) make it suitable for diverse factory environments, while its user-friendly microcomputer touchscreen allows easy parameter setting for cleaning, rinsing, and drying times.

2. Application Scope

The DEZ-C756 is versatile enough to serve multiple industries and clean a wide range of workpieces:

Industries: Healthcare, smartphone manufacturing, new energy, vehicle electronics, and aerospace.
Cleaning Objects: Wave soldering fixtures, reflow soldering carriers, condensers, plastic products, metal components, chains, and machine parts contaminated with flux, oil, or dust.

3. Working process

The DEZ-C756 operates in four seamless stages, all controllable via the touchscreen for customizable efficiency:

Manual Loading: Place workpieces into the rotating cleaning basket.
High-Pressure Spray Cleaning (5-15 minutes, 40-60℃): Uses water-based cleaning liquid (surfactant-free, solid-free formula) heated by a heater. High-pressure pumps generate powerful water flow to strip contaminants, which are filtered out via a 3-stage filtration system (cleaning chamber → liquid tank → 10μm stainless steel filter) for liquid recycling.
High-Pressure Spray Rinsing (3-8 minutes, 40-60℃): Pure water (or DI water) is sprayed at high pressure to remove residual cleaning liquid. The rinsing liquid is also filtered to prevent recontamination.
Drying: Combines high-pressure air shearing (via high-pressure fan) and hot air drying (60-80℃). Heated air accelerates moisture evaporation, leaving workpieces dry and ready for immediate use.

4. Core Advantages

What sets the DEZ-C756 apart from other cleaning machines on the market?

Fully Automated Efficiency: One-touch operation eliminates manual steps—no need to replace baskets or monitor liquid levels. Automatic liquid addition, drainage, and rinsing reduce labor costs by up to 70%.
720° All-Round Cleaning: Rotating baskets (driven by a low-noise variable frequency motor) and multi-directional nozzles (top, bottom, sides) ensure zero cleaning dead angles, outperforming static or single-direction spray systems.
Cost-Saving Design:
- Dual-pump, dual-fluid circuit system prevents mixing of cleaning and rinsing liquids, reducing liquid loss by 30% compared to similar models.
- Washable stainless steel filters (instead of disposable ones) cut consumable costs significantly.
- Closed-loop liquid circulation and filtration extend cleaning liquid lifespan by 50%.
Eco-Friendly & Safe: Uses non-toxic water-based cleaners; optional wastewater treatment systems achieve zero discharge. Safety features include anti-slip protective covers, dual proximity sensors, and torque alarms to prevent accidents.
Compact & Durable: Small footprint (1860*1500*1600mm) fits tight factory spaces. Imported PPH pipes (resistant to strong acids/alkalis) and 304 stainless steel body ensure long-term, leak-free use.

5. Product Structure

The DEZ-C756’s robust structure integrates key systems for seamless operation:

a.Cleaning/Rinsing Systems:

Multi-angle nozzles + rotating baskets for 360° coverage; liquids are recycled via filtration.

b.Rotating Basket Device:

Variable frequency motor-driven, low-noise rotation for uniform cleaning.

c.Water Circulation

3-stage filtration (primary → secondary → 10μm fine filter) ensures liquid purity.

d.Temperature Control:

Thermocouple-based thermostat maintains optimal liquid (40-60℃) and drying (60-80℃) temperatures.

e.Air Drying System:

High-pressure fan + heating tube for fast moisture removal via air knives.

f.Electrical Control:

Touchscreen with time/temperature displays, parameter settings, and real-time operation monitoring.

6.Work Case

A PCBA manufacturer’s reflow production line uses DEZ-C756 to clean fixture components that are severely contaminated by solder:

Process: 8-minute cleaning (45℃) → 5-minute rinsing → 10-minute drying (70℃).
Result: Post-cleaning, fixtures showed no residue, with surface cleanliness exceeding manual cleaning standards. They were immediately reusable in production, reducing downtime by 2 hours per batch.

The Dez Smart DEZ-C756 redefines industrial cleaning with its automation, efficiency, and cost-saving design. Whether for electronics, aerospace, or healthcare, it delivers consistent, high-quality results while minimizing environmental impact and labor costs.

Ready to upgrade your cleaning process? Visit www.dezsmt.com for more details or to request a demo.

Name	Technical indicators
Machine size	L1200 × W1100 × H1830(mm)
Cleaning cavity size	L690 x W620 x H715(mm)
Washing basket size	610 x W560 x H100 (mm) double-layer design
Machine power	About 24kw
Control Method	Touch screen + PLC control
Machine body material	304 stainless steel material
Cleaning basket material	304 stainless steel material
Power requirements	AC380V 50HZ 65A
Atmospheric pressure range	0.45Mpa～0.7Mpa
Weight	About 600kg
DI Water	>15MΩ
DI Water Inflow	0.3 m3/h
noise	< 70 Db
Spraying Pressure	30-40psi
Product Thickness (Maximum, Minimum)	0-100mm
Cleaning product Weight	≤10kg
Chemical Water Washing Tank Temperature	25-75℃
Drying Temperature	99 Degrees Maximum (Adjustable)
Spray Nozzle Installation Method	Quick connection,easy installation
Automatic filling system	optional
Water pipe installation	Quick connection, easy maintenance
Chemical liquid recovery and filtration	0.45μm (filters tiny particles of pollutants such as solder paste, rosin, flux, etc.)
DI Water Discharge Filtration	0.45μm (filters tiny particles of pollutants such as solder paste, rosin, flux, etc.)
Cleaning time	Adjustable (1-99min)
Rinse time	Adjustable (1-99min)
Drying time	Adjustable (1-99min)
Cleaning liquid temperature	Adjustable
Rinse temperature	Adjustable

Contact us to get a pricing quote

At DEZ, we deliver smart SMT equipment and solutions to optimize your production, minimize defects, and maximize throughput. Whether you’re scaling production, upgrading equipment, or seeking higher yields, DEZ is ready to offer help.
