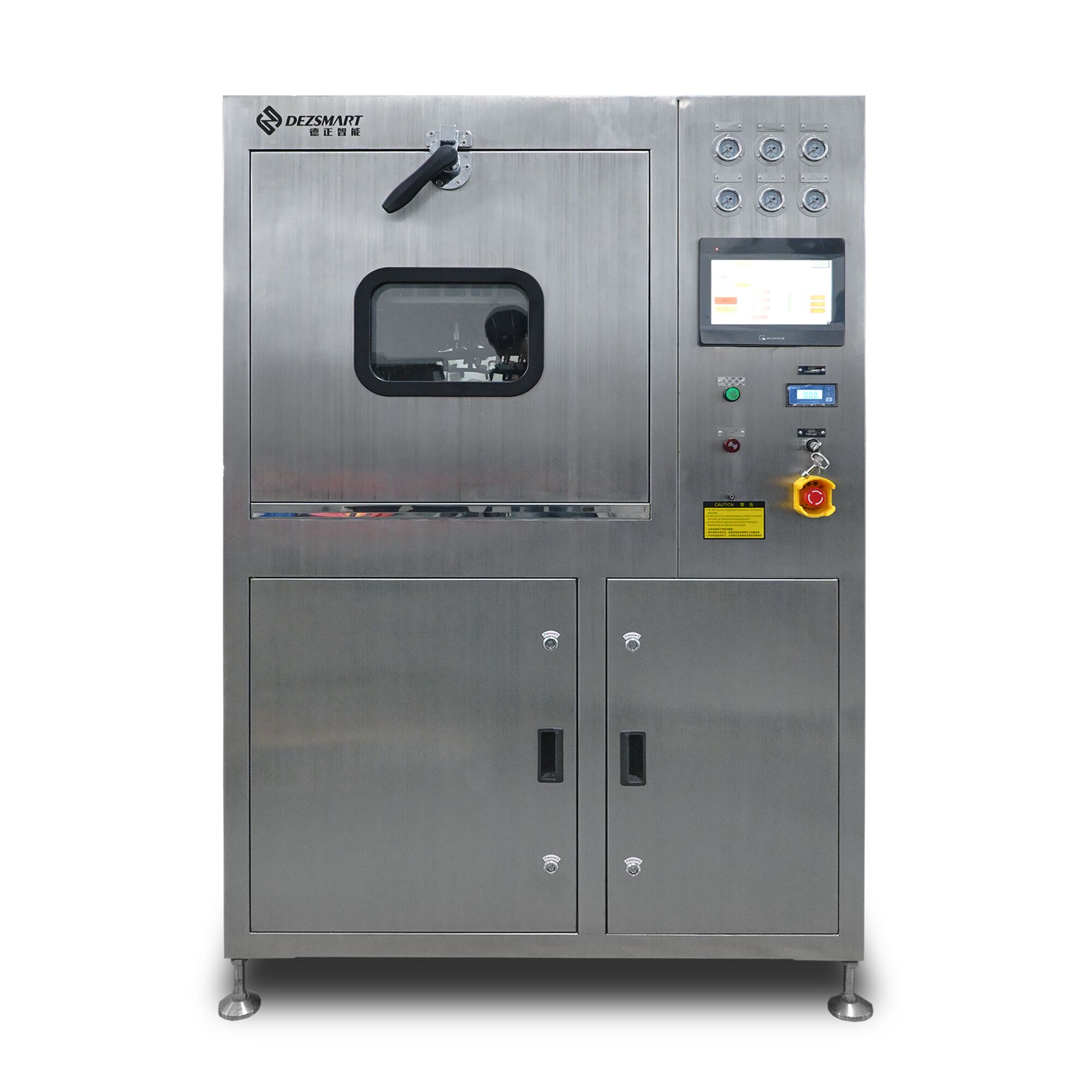

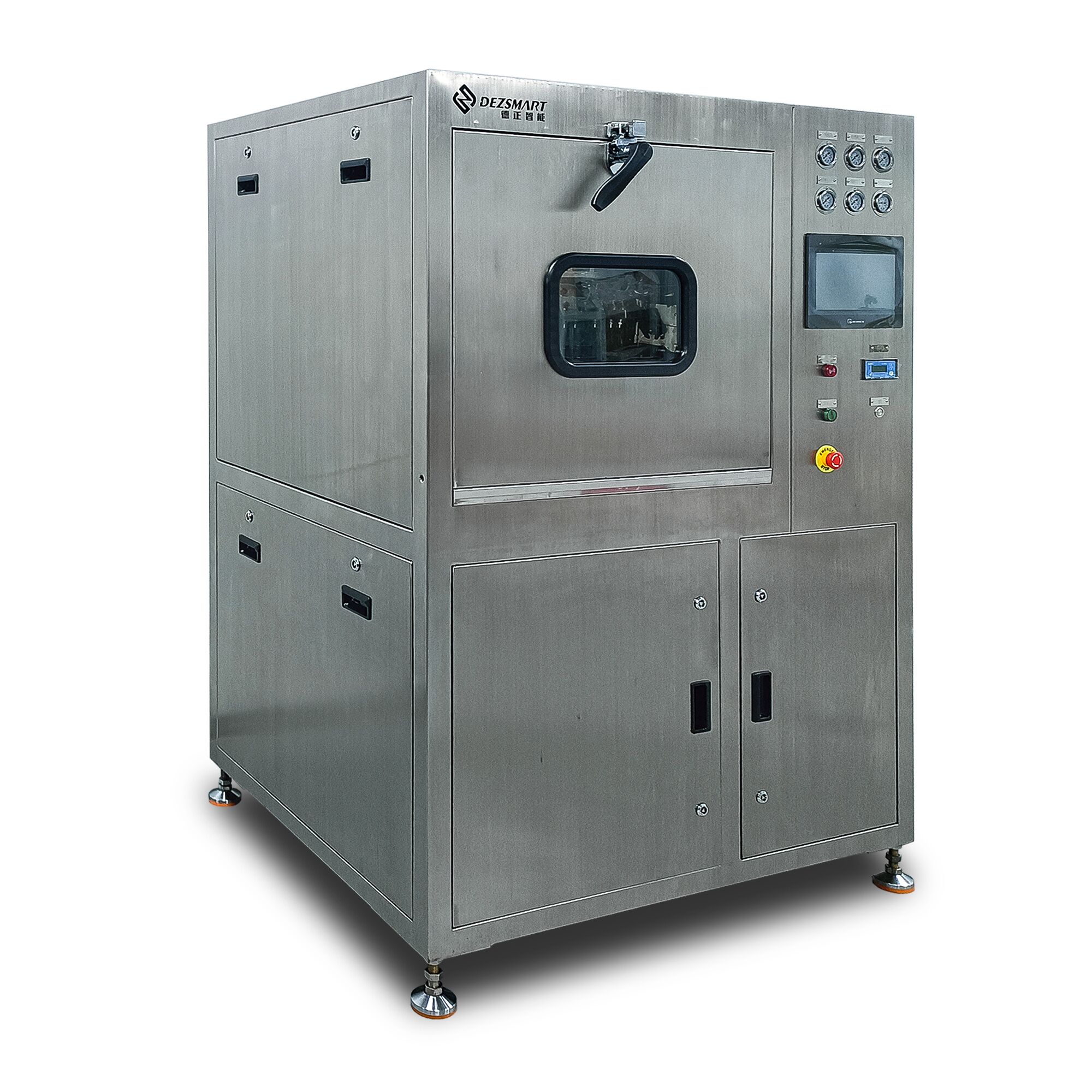

DEZ-C743 Offline PCBA Batch Cleaner

The DEZ-C743 is an offline PCBA water-based batch cleaner designed to remove various residues from PCBA. It offers high cleaning efficiency and low cost, making it ideal for electronics manufacturing.

FAQ

1. Can you provide sample testing?
A: Yes. We support customers to provide PCB samples for free testing to ensure that the equipment meets your cleaning needs.

2. How long is the delivery cycle of the equipment?
A: The delivery cycle of standard models is [14-30 days], and customized models may take longer. The specific delivery time can be confirmed based on the order situation.

3. Does the equipment support non-standard customization?
A: Yes, we support non-standard customization and can provide personalized solutions based on your PCB size, cleaning requirements and production environment.

4.What does after-sales service include?
Lifetime technical support
Operation training
One-year warranty (except for wearing parts)
Quick response repair service

Key Features:
Integrated offline cleaning system for batch processing.
High cleaning efficiency with low cost.
Full cleaning, rinsing, and drying in one chamber.
Visualization of the cleaning process.
Large cleaning capacity with a double-layer design.
Scientific nozzle design for efficient cleaning.
Adjustable nozzle pressure to prevent damage to small products.
Standard dilution tank heating system for improved efficiency.

Technical Datasheet:
– Dimensions:
– Machine Size: L1200 * W1100 * H1830(mm)
– Cleaning Cavity Size: L690 * W620 * H715(mm)
– Washing Basket Size: 610 * W560 * H100(mm) (double-layer design)
– Power Requirements:
– Machine Power: Approximately 24kw
– Power: AC380V 50HZ 65A
– Atmospheric Pressure Range: 0.45Mpa to 0.7Mpa
– Performance:
– Weight: Approximately 600kg
– DI Water: >15M¦¸
– DI Water Inflow: 0.3 m3/h
– Noise: < 70 Db

– Spraying Pressure: 30-40psi
– Product Thickness (Maximum, Minimum): 0-100mm
– Cleaning Product Weight: ≤10kg
– Chemical Water Washing Tank Temperature: 25-75℃
– Drying Temperature: 99 Degrees Maximum (Adjustable)
– Spray Nozzle Installation Method: Quick connection, easy installation
– Automatic Filling System: Optional
– Water Pipe Installation: Quick connection, easy maintenance
– Chemical Liquid Recovery and Filtration: 0.45μm (filters tiny particles of pollutants such as solder paste, rosin, flux, etc.)
– DI Water Discharge Filtration: 0.45μm (filters tiny particles of pollutants such as solder paste, rosin, flux, etc.)
– Cleaning Time: Adjustable (1-99min)
– Rinse Time: Adjustable (1-99min)
– Drying Time: Adjustable (1-99min)
– Cleaning Liquid Temperature: Adjustable
– Rinse Temperature: Adjustable

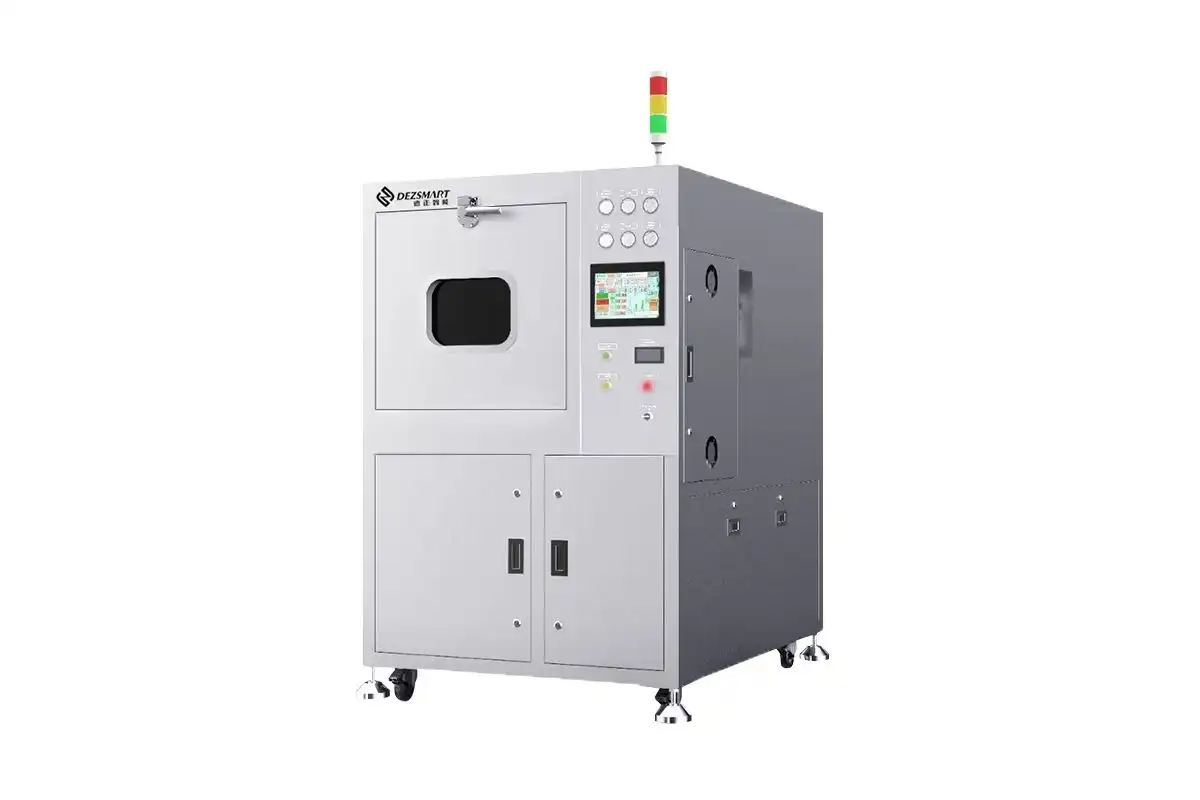

DEZ-C743 Offline PCBA Batch Cleaner

Contact us to get a pricing quote
