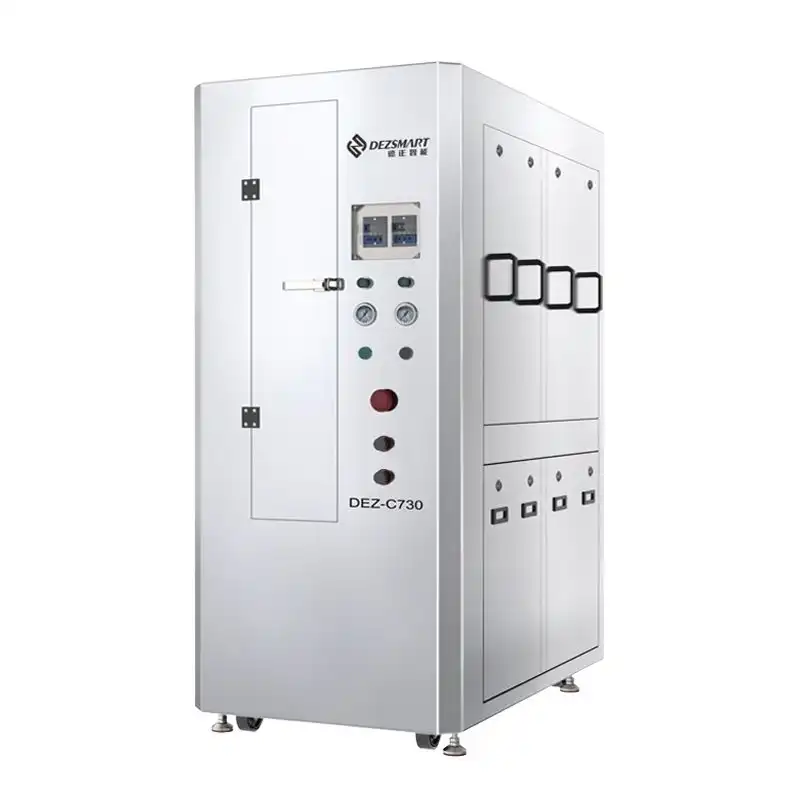

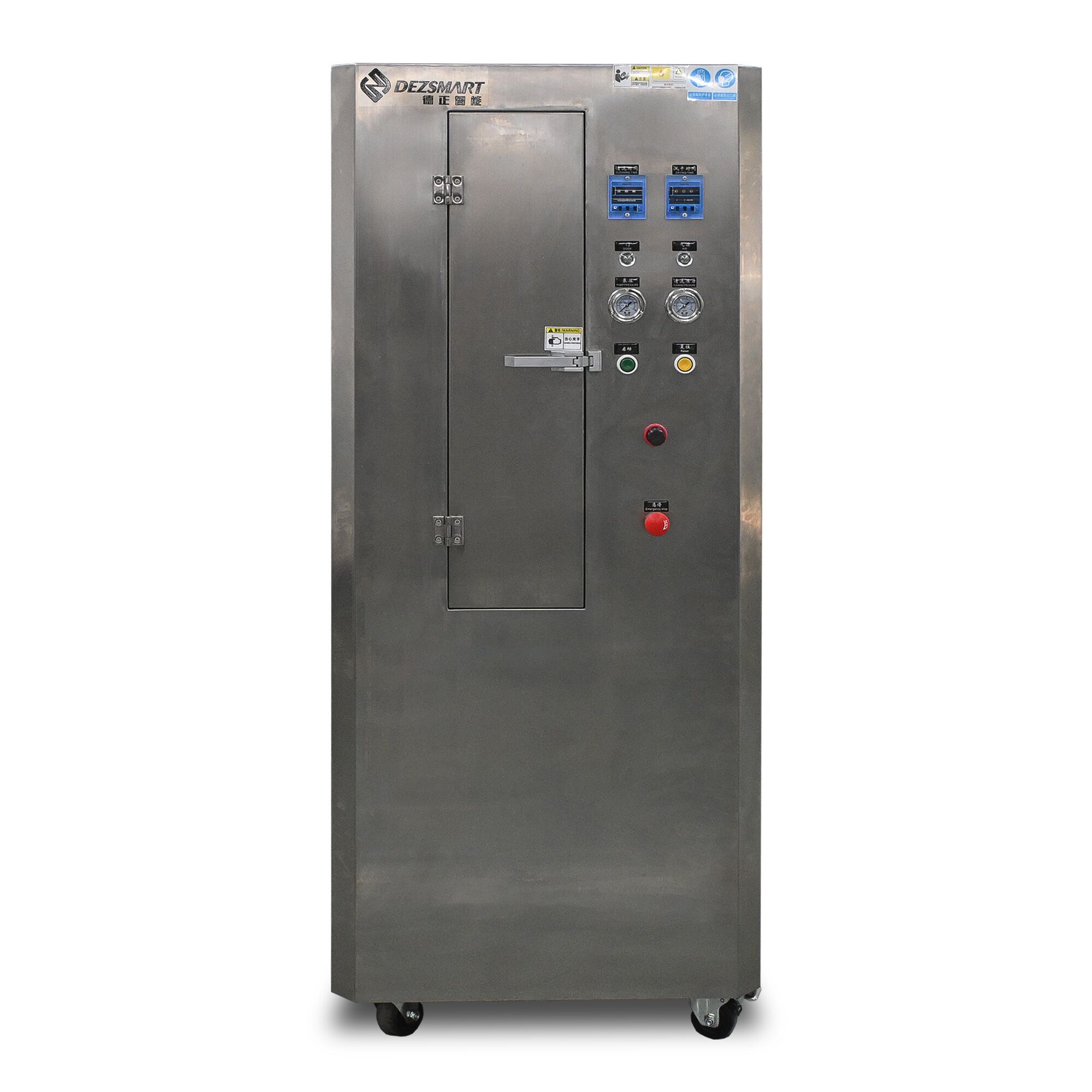

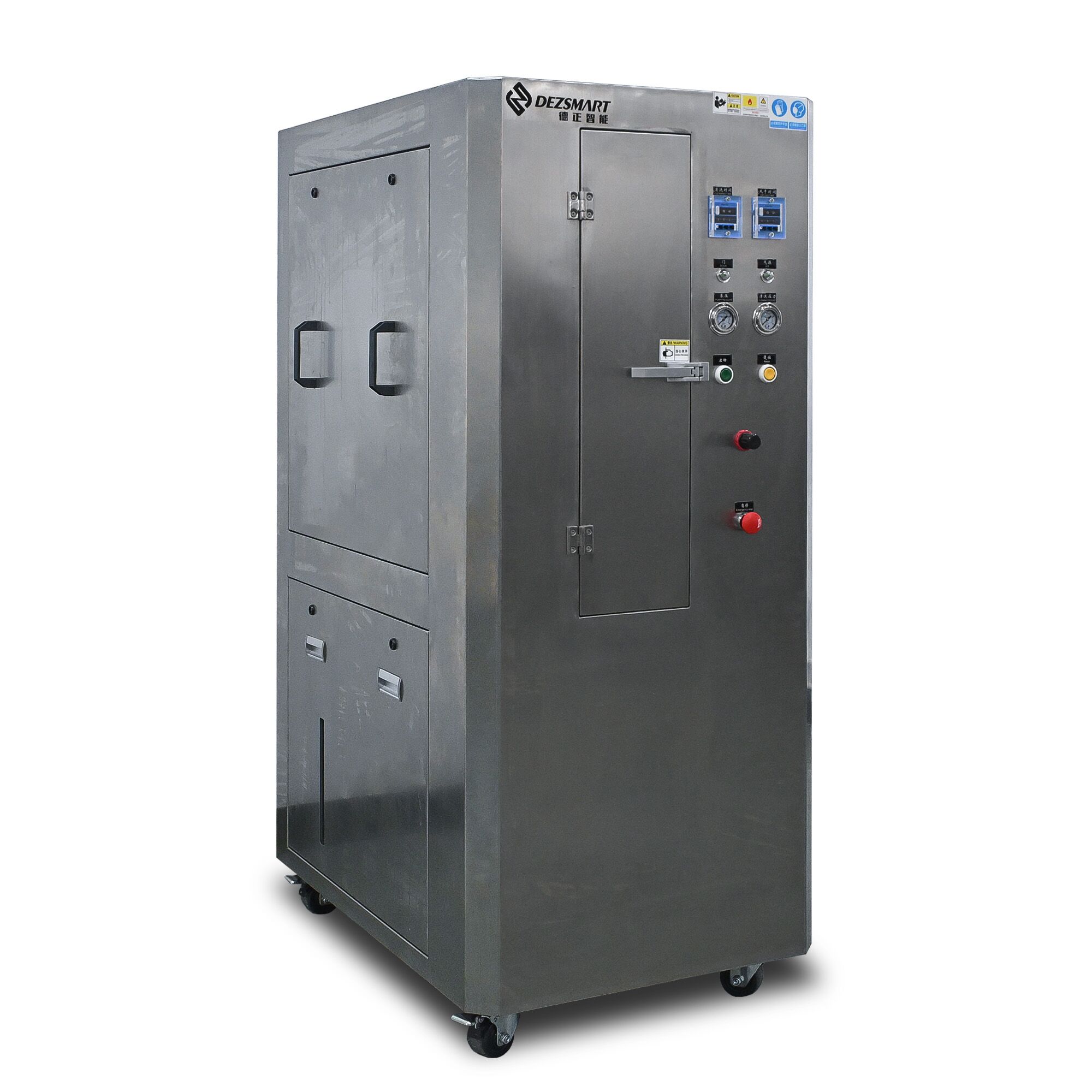

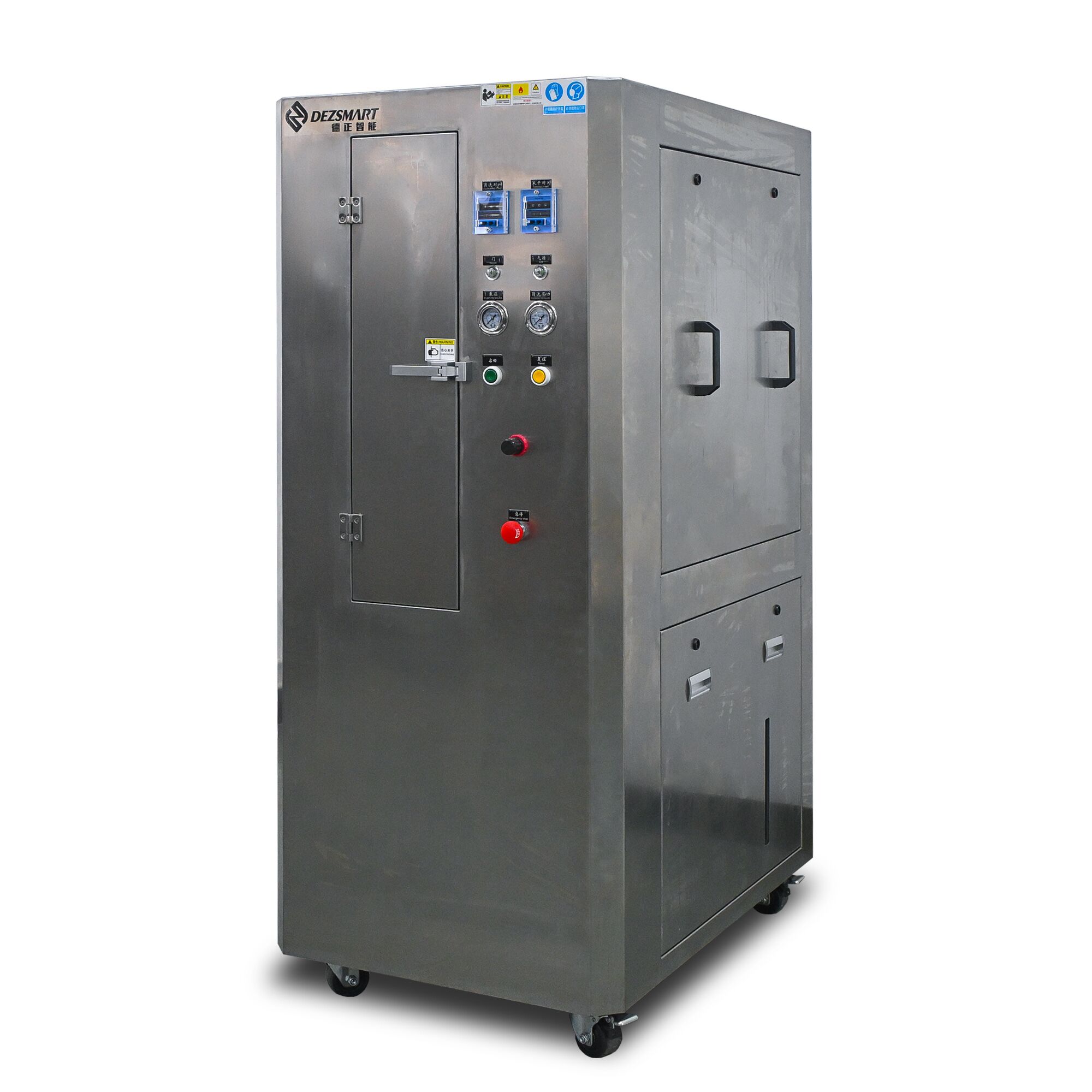

DEZ-C730 Pneumatic Stencil Cleaning Machine
The DEZ-C730 is a high-performance pneumatic printing screen cleaning machine designed for cleaning various types of screens. It offers efficient cleaning and drying, ensuring consistent results and improved productivity.
Specifications & Datasheet
Key Features:
Fully pneumatic operation with no electricity required, ensuring safety.
Side wall air intake and drying design for efficient operation.
Humanized design with one-touch operation and automatic filling and discharging functions.
Replaceable modular controller and quick-plug design for easy maintenance.
Three-stage filtration system for solvent recycling and low liquid consumption.

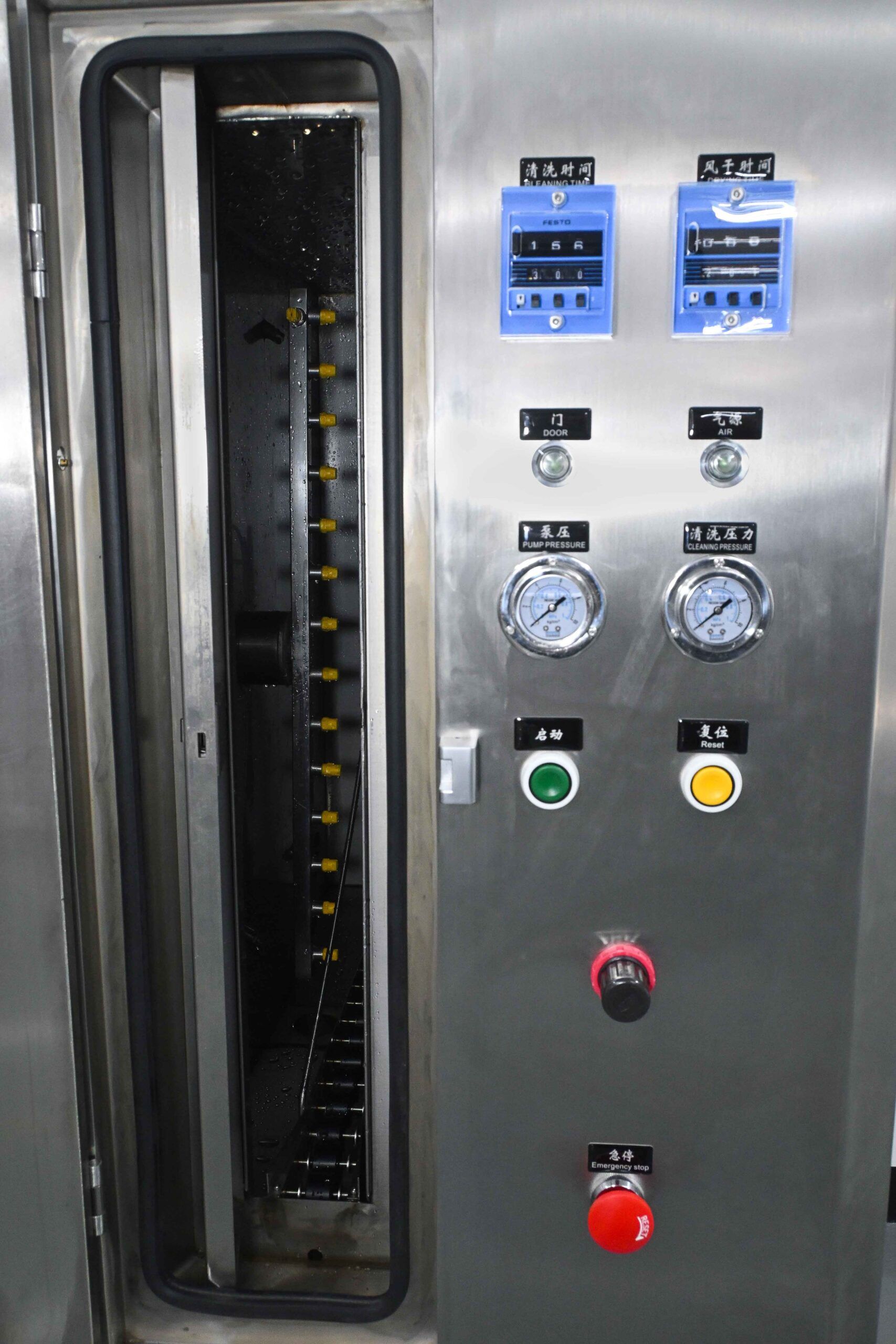

High-density isobaric double-sided rotating cleaning nozzle for strong cleaning power.
System integration of global high-quality control components for stable performance.
All stainless steel body for durability and environmental compliance.
Technical Datasheet:
– Stencil Size:
– Maximum: 740mm(L) * 740mm(W) * 40mm(H)
– Special sizes need to be customized
– Cleaning Liquid Capacity:
– Maximum: 40L
– Optimal Usage: 30L
– Cleaning Method:
– 360¡ã rotating double-sided equal pressure jet roll high-pressure jetting (cleaning ¡ú drying)
– Time:
– Cleaning Time: 2-4 minutes (conventional process)
– Drying Time: 2-5 minutes (conventional process)
– Air Source:
– External Air Source: 0.45Mpa to 0.6Mpa
– Filtration:
– Three-stage filtration
– Level 1: 1mm (filters debris and labels)
– Level 2: 5μm (filters micro particles and solder paste)
– Level 3: 1μm (filters micro particles and flux)
– Exhaust Port:
– Size: ¦µ125(W) * 25mm(H)
– Machine Weight:
– Net Weight: Approximately 200kg
– Machine Size:
– Dimensions: 1000mm(L) * 710mm(W) * 1720mm(H)
– Compressed Air:
– Consumption: 400-600L/Min
– Cleaning Liquid Consumption: 120-200ml per batch (varies with stencil size and cleaning liquid type)
