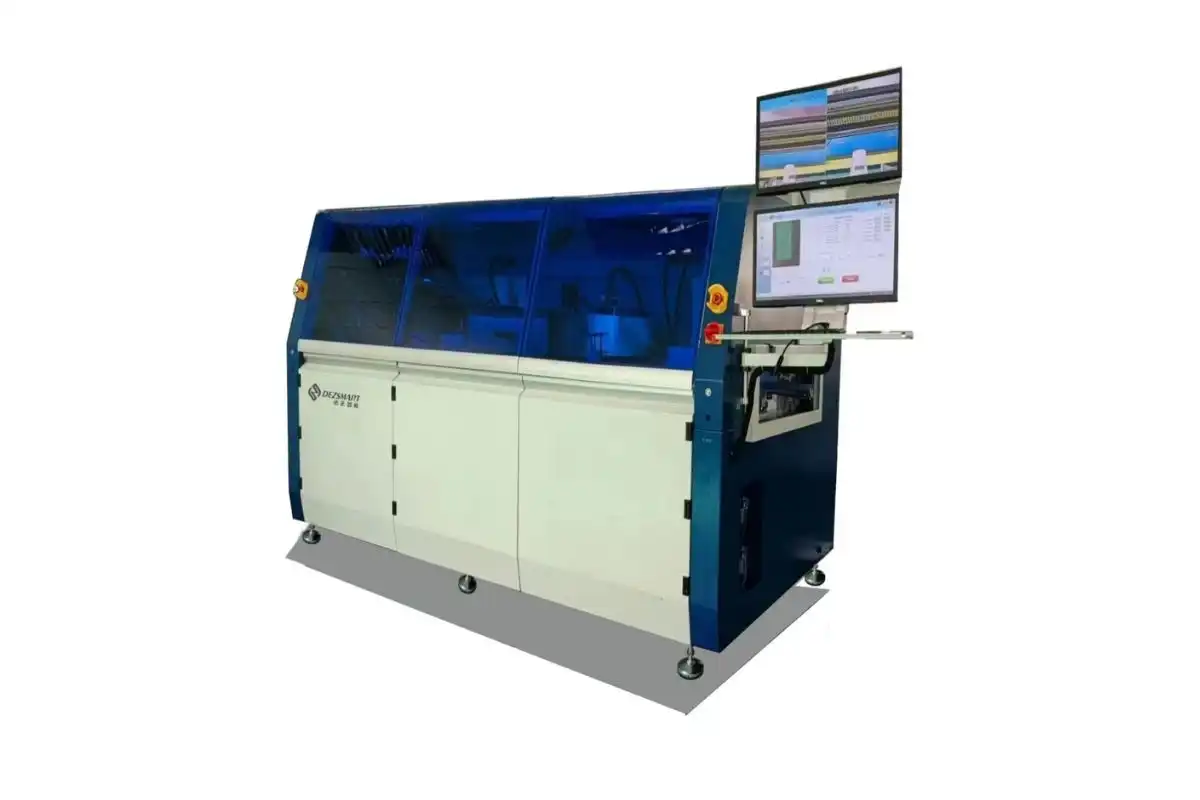

DEZ-H3900A Inline Selective Soldering Machine
The DEZ-H3900A is an inline selective soldering machine designed for high-quality soldering of PCBs. It offers a compact and fully functional design, ensuring high productivity and flexibility.
Spezifikationen & Datenblatt
Wesentliche Merkmale:
All-in-one machine with compact design for high productivity.
High welding quality with precise control.
Easy integration into production lines with flexible assembly.
Fully computer-controlled operation with parameter settings and storage.
Real-time monitoring and traceability for consistent results.
Modular design for easy maintenance and upgrades.
Technisches Datenblatt:
– Dimensions:
– L3150 * W1680 * H1690mm
– General Power:
– Total Power: 20kw
– Consumption Power: 6-10kw
– Power Supply: Three-phase five-wire 380V
– Net Weight: ~1500KG
– Air Source Requirements:
– Pressure: 3-5 Bars
– Flow: 8-12L/min
– Nitrogen Source Requirements:
– Pressure: 3-4 Bars
– Flow: More than 1.5 cubic meters per hour
– Purity: ¡Ý99.998%
– Exhaust Requirements:
– Spray Above: 800—1000cbm/h
– Above the Tin Furnace: 600—800cbm/h
– PCB Specifications:
– Carrier: Necessary
– Maximum Carrier Size: L500 * W600mm (W is machine width)
– Maximum Solder Area: L500 * W450mm (W is machine width)
– PCB Edge: ¡Ý3mm
– Control System:
– PLC + controller
– Conveyor Width: 300-600MM
– Conveyor Type: Pin chain conveyor for fluxing & preheating, roller conveyor for soldering
– Conveyor Thickness: 1—-4mm
– PCB Conveyor Direction: Horizontal transport from left to right
– PCB Conveyor Up Clearance: 100MM (other sizes can be customized)
– PCB Conveyor Bottom Clearance: 30MM
– Conveyor Load: ≤10kg
– Conveyor Rail: Aluminum rail
– Conveyor Height: 900+/-30mm
– Flux Management:
– Flux Nozzle: Jet valve
– Nozzle Durability: Stainless steel
– Flux Tank Capacity: 1L
– Flux Tank: Pressure tank
– Preheat:
– Preheat Method: Upper & bottom IR heating
– Heater¡¯s Power: 6kw
– Temperature Range: 25–240℃
– Solder Pot:
– Standard Pot Number: 1
– Solder Pot Capacity: 13kg/pot (solenoid pump)
– Solder Temperature Range: PID
– Melting Time: 75 minutes to 260℃
– Max Solder Temperature: 350℃
– Solder Heater: 1.2kw
– Solder Nozzle Cleaning: Automatic cleaning, time can be set
– Solder Nozzle: Customized shapes, material high carbon alloy, standard equipped nozzle 5 pieces/pot (inner diameter 3mm, 4mm, 5mm, 6mm, 8mm)
– Nitrogen Management: Yes, Nitrogen PID Control 0 – 350℃, Nitrogen consumption 1-2m3/hour/solder nozzle, total: 4 m3/h
