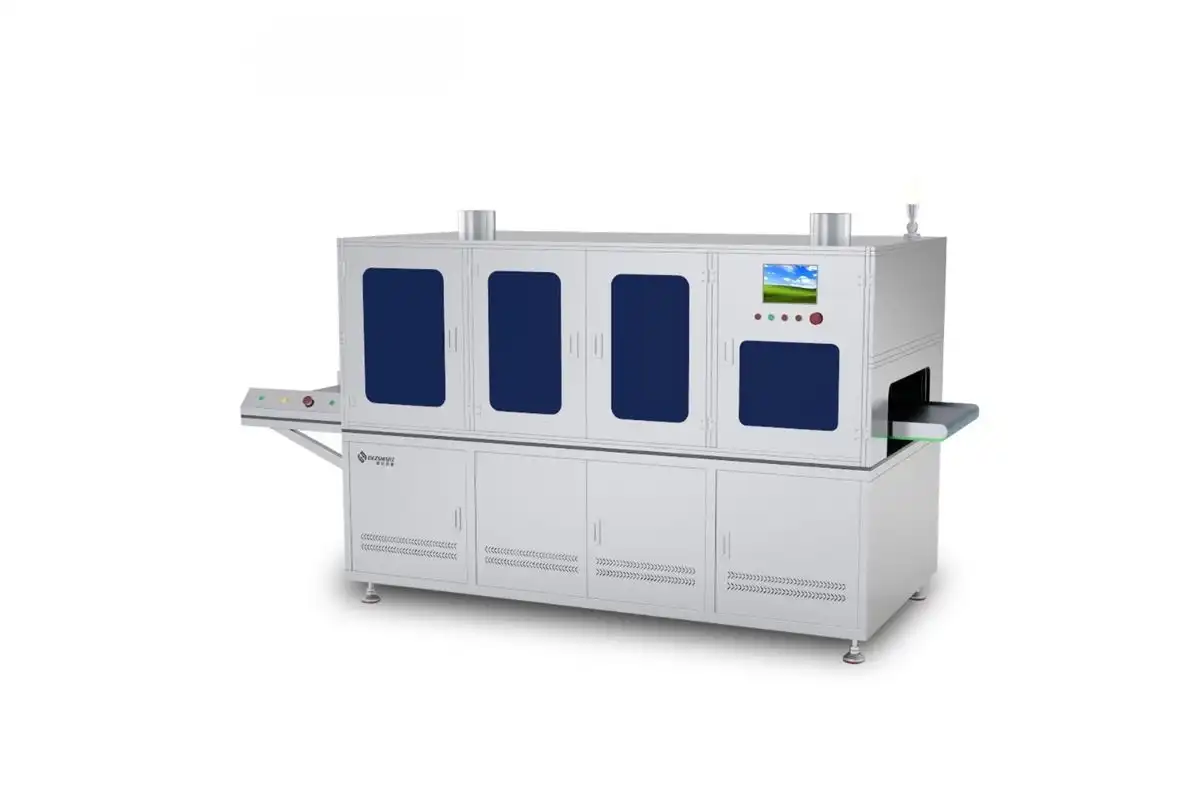

DEZ-C1520 Inline PCBA Reinigungsmaschine auf Wasserbasis
The DEZ-C1520 is an inline water-based spray cleaning machine designed for cleaning PCBA boards. It offers a comprehensive cleaning process with multiple stages, ensuring high cleanliness and productivity.
Spezifikationen & Datenblatt
Wesentliche Merkmale:
Three process sections: chemical washing, pure water rinsing, and strong hot air drying.
Full width conveyor belt with adjustable speed.
Stainless steel mesh basket transport for durability.
Touch screen control system with intuitive interface.
Various cycle schemes for different cleaning requirements.
Fast-wash, multi-directional nozzles for efficient cleaning.
Independent water tanks for each cleaning section.
Double-layer thermal insulation glass window for energy savings.
Technisches Datenblatt:
– Dimensions:
– Machine Size: L5210 * W1760 * H1680mm
– Cleaning Cavity Size: L690 * W620 * H715mm
– Washing Basket Size: 610 * W560 * H100mm (double-layer design)
– Power Requirements:
– Machine Power: Approximately 100kw
– Use Power: About 65-85KW
– Power: AC380V 50HZ
– Weight: Approximately 2200kg
- Leistung:
– Cleaning Product Size: 500mm(W) * 400mm(L) * 80mm(H)
– Cleaning Fluid Consumption: 1.5-2.5L/H
– DI Water Consumption: 5L-10L/min
– Transport Speed: 10mm/min-1500mm/min
– Noise: < 80 Db – Chemical Washing Area Spray Pressure: 0-0.6Mpa
– DI Rinsing Area Spray Pressure: 0-0.6Mpa
– Product Weight: ≤10kg – Chemical Washing Section Water Tank Temperature: 25-75℃
– Wind Knife Angle: Angle adjustable, lift adjustable
– Nozzle Installation Method: Quick connector for easy replacement
– Mesh Belt Width: 600mm, customizable
– Water Pipe Installation Method: Quick connection for easy maintenance
– Filtration Accuracy (secondary): 100u
– DI Water Quality Requirements: – >15M¦¸
– DI Water Inflow Requirements:
– 1.0 m3/h
– Air Volume Requirements:
– 1200 CFM
