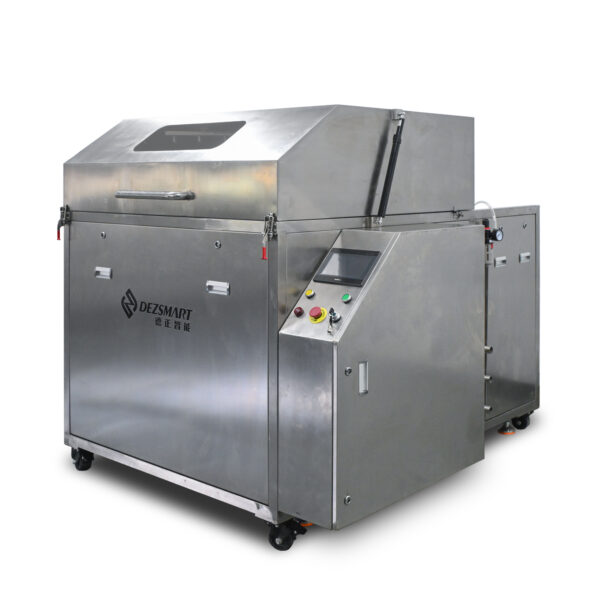

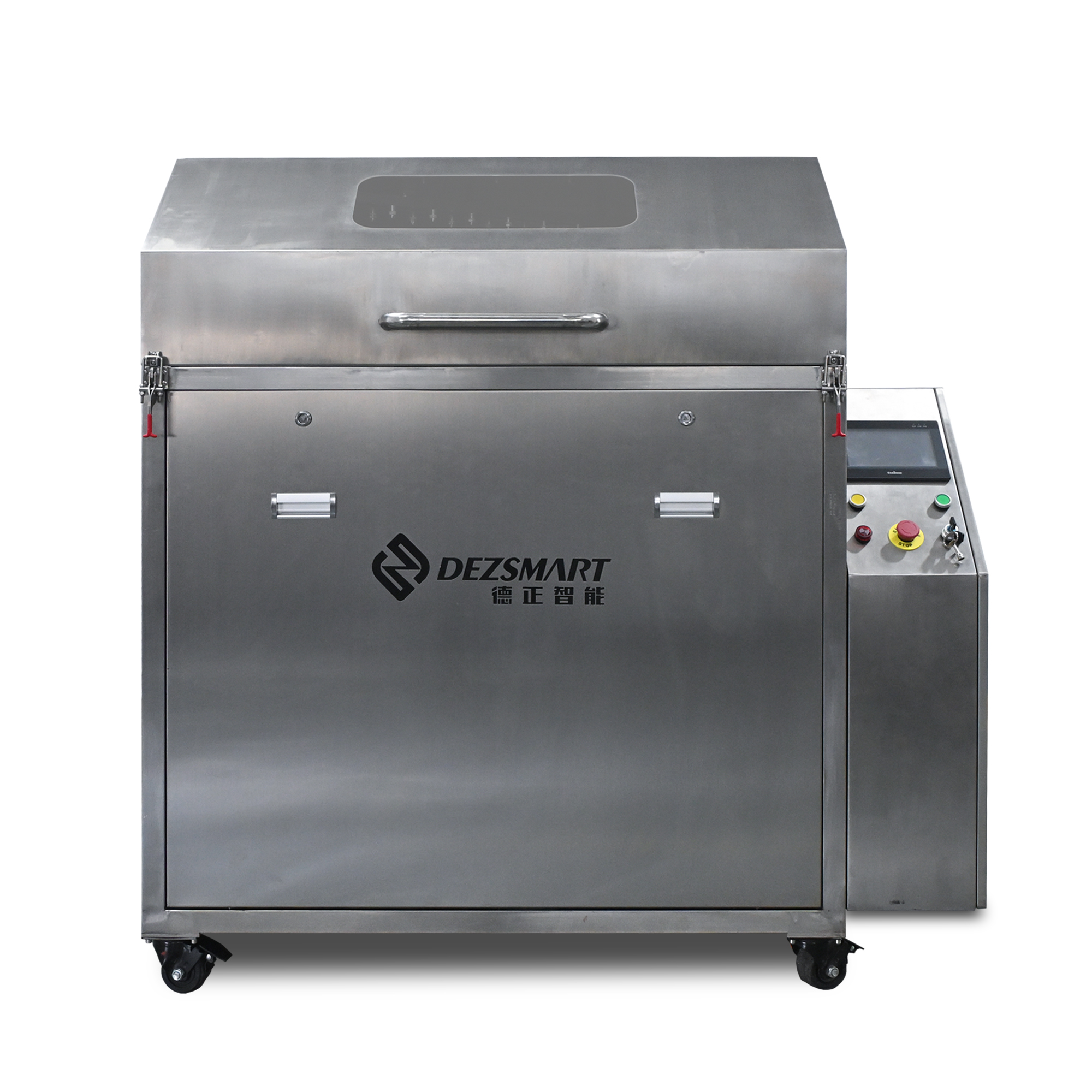

C756 Automatic Spray Fixture Cleaning Machine

⁦C756 Automatic Spray Fixture Cleaning Machine⁩ - الصورة ⁦2⁩

⁦C756 Automatic Spray Fixture Cleaning Machine⁩ - الصورة ⁦3⁩

آلة تنظيف تركيبات الرش الرذاذ الأوتوماتيكية C756

ماكينة DEZ-C756 عبارة عن ماكينة تنظيف أوتوماتيكية لتنظيف التركيبات بالرش الرذاذي مصممة لتنظيف قطع العمل المختلفة. وهي توفر التنظيف بالرش الرذاذي عالي الضغط والشطف والتجفيف، مما يضمن التنظيف الشامل وتقليل وقت التوقف عن العمل.

التعليمات

1. هل يمكنك تقديم اختبار العينة؟
ج: نعم. نحن ندعم العملاء لتقديم عينات من ثنائي الفينيل متعدد الكلور لاختبارها مجانًا للتأكد من أن المعدات تلبي احتياجات التنظيف الخاصة بك.

2. ما هي مدة دورة تسليم المعدات؟
ج: دورة تسليم النماذج القياسية هي [14-30 يومًا]، وقد تستغرق النماذج المخصصة وقتًا أطول. يمكن تأكيد وقت التسليم المحدد بناءً على حالة الطلب.

3. هل تدعم المعدات التخصيص غير القياسي؟
ج: نعم، نحن ندعم التخصيص غير القياسي ويمكننا توفير حلول مخصصة بناءً على حجم ثنائي الفينيل متعدد الكلور ومتطلبات التنظيف وبيئة الإنتاج.

4- ماذا تشمل خدمات ما بعد البيع service؟
دعم فني مدى الحياة
التدريب على العمليات
ضمان لمدة سنة واحدة (باستثناء الأجزاء البالية)
إصلاح سريع الاستجابة service

1. نظرة عامة على المنتج

The Dez Smart DEZ-C756 automatic jig & fixture cleaning machine is a high-performance, water-based cleaning solution designed to streamline industrial workpiece maintenance. From wave soldering fixtures and reflow soldering trays to condensers and machine parts, it efficiently removes flux, oil, dust, and other contaminants through a fully automated process—no manual intervention required once initiated.

Equipped with advanced technologies like high-pressure spray cleaning, high-pressure rinsing, high-pressure air shearing, and large-flow hot air drying, the DEZ-C756 ensures thorough cleaning and immediate usability of workpieces post-treatment. Its compact design (L1860W1500H1600mm) and all-stainless steel structure (304 grade) make it suitable for diverse factory environments, while its user-friendly microcomputer touchscreen allows easy parameter setting for cleaning, rinsing, and drying times.

2. نطاق التطبيق

The DEZ-C756 is versatile enough to serve multiple industries and clean a wide range of workpieces:

Industries: Healthcare, smartphone manufacturing, new energy, vehicle electronics, and aerospace.
Cleaning Objects: Wave soldering fixtures, reflow soldering carriers, condensers, plastic products, metal components, chains, and machine parts contaminated with flux, oil, or dust.

3. عملية العمل

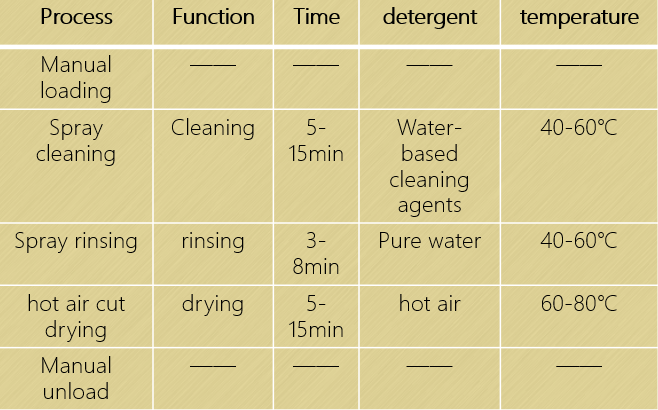

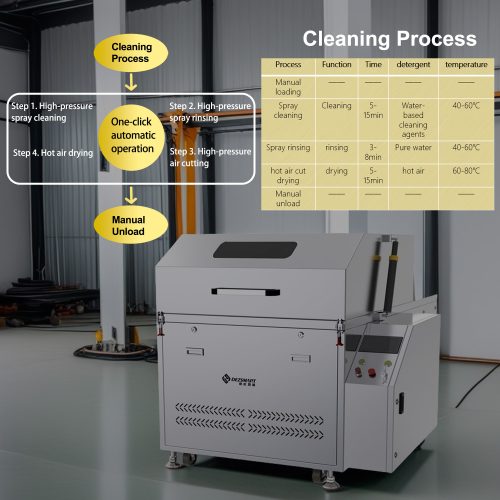

The DEZ-C756 operates in four seamless stages, all controllable via the touchscreen for customizable efficiency:

Manual Loading: Place workpieces into the rotating cleaning basket.
High-Pressure Spray Cleaning (5-15 minutes, 40-60℃): Uses water-based cleaning liquid (surfactant-free, solid-free formula) heated by a heater. High-pressure pumps generate powerful water flow to strip contaminants, which are filtered out via a 3-stage filtration system (cleaning chamber → liquid tank → 10μm stainless steel filter) for liquid recycling.
High-Pressure Spray Rinsing (3-8 minutes, 40-60℃): Pure water (or DI water) is sprayed at high pressure to remove residual cleaning liquid. The rinsing liquid is also filtered to prevent recontamination.
Drying: Combines high-pressure air shearing (via high-pressure fan) and hot air drying (60-80℃). Heated air accelerates moisture evaporation, leaving workpieces dry and ready for immediate use.

4. المزايا الأساسية

What sets the DEZ-C756 apart from other cleaning machines on the market?

Fully Automated Efficiency: One-touch operation eliminates manual steps—no need to replace baskets or monitor liquid levels. Automatic liquid addition, drainage, and rinsing reduce labor costs by up to 70%.
720° All-Round Cleaning: Rotating baskets (driven by a low-noise variable frequency motor) and multi-directional nozzles (top, bottom, sides) ensure zero cleaning dead angles, outperforming static or single-direction spray systems.
Cost-Saving Design:
- Dual-pump, dual-fluid circuit system prevents mixing of cleaning and rinsing liquids, reducing liquid loss by 30% compared to similar models.
- Washable stainless steel filters (instead of disposable ones) cut consumable costs significantly.
- Closed-loop liquid circulation and filtration extend cleaning liquid lifespan by 50%.
Eco-Friendly & Safe: Uses non-toxic water-based cleaners; optional wastewater treatment systems achieve zero discharge. Safety features include anti-slip protective covers, dual proximity sensors, and torque alarms to prevent accidents.
Compact & Durable: Small footprint (1860*1500*1600mm) fits tight factory spaces. Imported PPH pipes (resistant to strong acids/alkalis) and 304 stainless steel body ensure long-term, leak-free use.

5. هيكلية المنتج

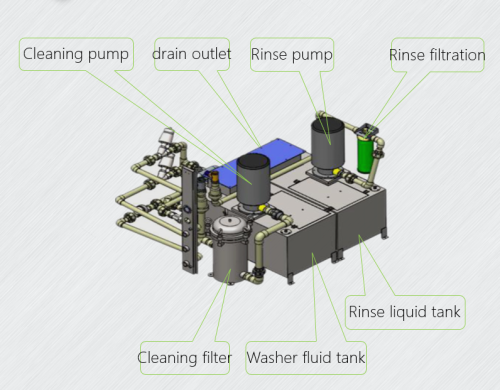

The DEZ-C756’s robust structure integrates key systems for seamless operation:

a.Cleaning/Rinsing Systems:

Multi-angle nozzles + rotating baskets for 360° coverage; liquids are recycled via filtration.

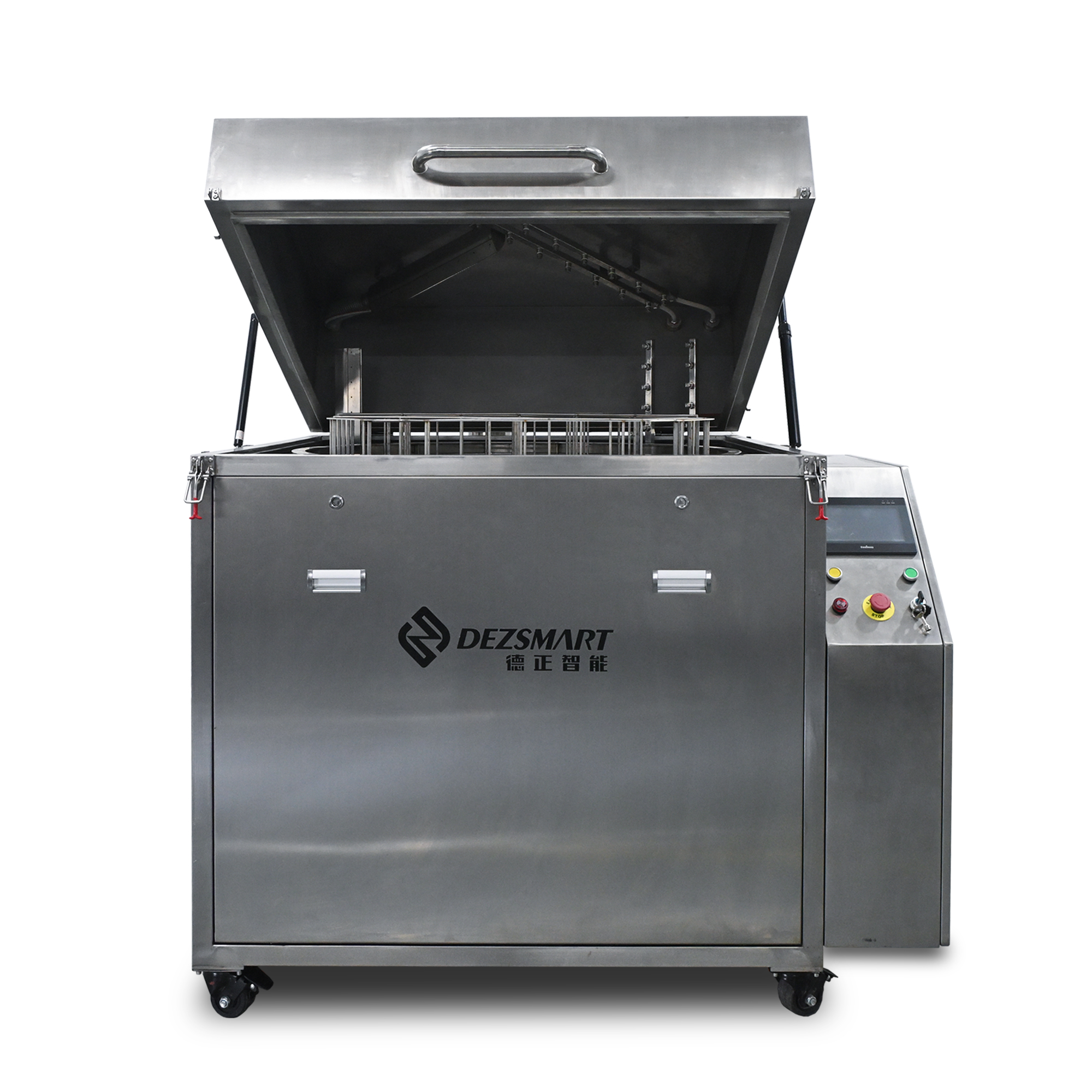

b.Rotating Basket Device:

Variable frequency motor-driven, low-noise rotation for uniform cleaning.

c.Water Circulation

3-stage filtration (primary → secondary → 10μm fine filter) ensures liquid purity.

d.Temperature Control:

Thermocouple-based thermostat maintains optimal liquid (40-60℃) and drying (60-80℃) temperatures.

e.Air Drying System:

High-pressure fan + heating tube for fast moisture removal via air knives.

f.Electrical Control:

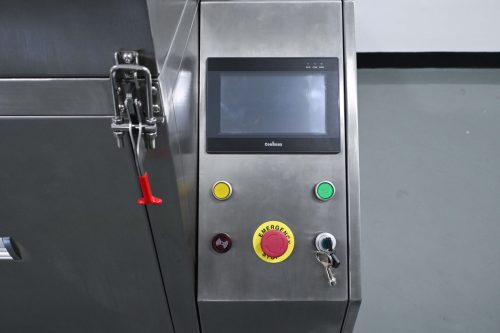

Touchscreen with time/temperature displays, parameter settings, and real-time operation monitoring.

6- حالة العمل

A PCBA manufacturer’s reflow production line uses DEZ-C756 to clean fixture components that are severely contaminated by solder:

عملية: 8-minute cleaning (45℃) → 5-minute rinsing → 10-minute drying (70℃).
Result: Post-cleaning, fixtures showed no residue, with surface cleanliness exceeding manual cleaning standards. They were immediately reusable in production, reducing downtime by 2 hours per batch.

The Dez Smart DEZ-C756 redefines industrial cleaning with its automation, efficiency, and cost-saving design. Whether for electronics, aerospace, or healthcare, it delivers consistent, high-quality results while minimizing environmental impact and labor costs.

هل أنت مستعد لترقية عملية التنظيف؟ تفضل بزيارة www.dezsmt.com for more details or to request a demo.

اسم	Technical indicators
حجم الماكينة	L1200 × W1100 × H1830(mm)
Cleaning cavity size	L690 x W620 x H715(mm)
Washing basket size	610 x W560 x H100 (mm) double-layer design
Machine power	About 24kw
Control Method	Touch screen + PLC control
مادة جسم الماكينة	304 stainless steel material
Cleaning basket material	304 stainless steel material
Power requirements	AC380V 50HZ 65A
Atmospheric pressure range	0.45Mpa～0.7Mpa
وزن	About 600kg
DI Water	>15MΩ
DI Water Inflow	0.3 m3/h
الضوضاء	< 70 Db
Spraying Pressure	30-40psi
Product Thickness (Maximum, Minimum)	0-100mm
Cleaning product Weight	≤10kg
Chemical Water Washing Tank Temperature	25-75℃
Drying Temperature	99 Degrees Maximum (Adjustable)
Spray Nozzle Installation Method	Quick connection,easy installation
Automatic filling system	اختياري
Water pipe installation	Quick connection, easy maintenance
Chemical liquid recovery and filtration	0.45μm (filters tiny particles of pollutants such as solder paste, rosin, flux, etc.)
DI Water Discharge Filtration	0.45μm (filters tiny particles of pollutants such as solder paste, rosin, flux, etc.)
وقت التنظيف	Adjustable (1-99min)
وقت الشطف	Adjustable (1-99min)
وقت التجفيف	Adjustable (1-99min)
Cleaning liquid temperature	Adjustable
Rinse temperature	Adjustable
