DEZ-C1650 Dry Ice Cleaning Machine

DEZ-C1650 Dry Ice Cleaning Machine - Imagem 2

DEZ-C1650 Dry Ice Cleaning Machine - Imagem 3

DEZ-C1650 Dry Ice Cleaning Machine - Imagem 4

Máquina de limpeza com gelo seco DEZ-C1650

A DEZ-C7320 é uma máquina de limpeza com gelo seco em linha concebida para limpeza industrial. Oferece uma solução de limpeza não abrasiva, não tóxica e amiga do ambiente, tornando-a ideal para várias indústrias.

FAQ

1. Pode fornecer ensaios de amostras?
R: Sim. Ajudamos os clientes a fornecer amostras de PCB para testes gratuitos, de modo a garantir que o equipamento satisfaz as suas necessidades de limpeza.

2. Qual a duração do ciclo de entrega do equipamento?
R: O ciclo de entrega dos modelos padrão é de [14-30 dias], e os modelos personalizados podem demorar mais tempo. O prazo de entrega específico pode ser confirmado com base na situação da encomenda.

3. O equipamento suporta personalização não normalizada?
R: Sim, apoiamos a personalização fora do padrão e podemos fornecer soluções personalizadas com base no tamanho do seu PCB, requisitos de limpeza e ambiente de produção.

4. o que inclui o serviço pós-venda service?
Assistência técnica vitalícia
Formação operacional
Garantia de um ano (exceto para peças de desgaste)
Reparação de resposta rápida service

1. Visão geral do produto

The DezSmart DEZ-C1650 dry ice cleaning machine is a revolutionary industrial cleaning solution that redefines efficiency, safety, and sustainability. Using dry ice (solid carbon dioxide, CO₂) as the cleaning medium, it employs a dry decontamination method that works directly on production lines—no need to halt operations or disassemble equipment.

Dry ice particles, with a Mohs hardness of just 2 (softer than materials like copper or calcite), ensure non-abrasive cleaning, preserving machinery tolerances and avoiding damage to bearings or surfaces. After spraying, dry ice sublimates instantly (turns from solid to gas), leaving zero residue and generating no secondary waste. This makes the DEZ-C1650 ideal for sensitive or precision cleaning tasks, combining power with gentleness to deliver superior results.

2. Âmbito de aplicação

The DEZ-C1650 is versatile across industries, tackling diverse contaminants in various scenarios:

Key Industries: Automotive manufacturing, industrial mold maintenance, petrochemical processing, printing, electronics production, nuclear industry, and general manufacturing.
Specific Cleaning Objects:
- Industrial molds (removing resin, release agents, and debris)
- PCBA and electronic components (flux, dust, and solder residues)
- Automotive parts (engine 油污，tire molds, and metal surface contaminants)
- Wave soldering fixtures and plastic burrs
- Metal parts with oil stains, high-end power supplies, and boilers

3. Processo de trabalho

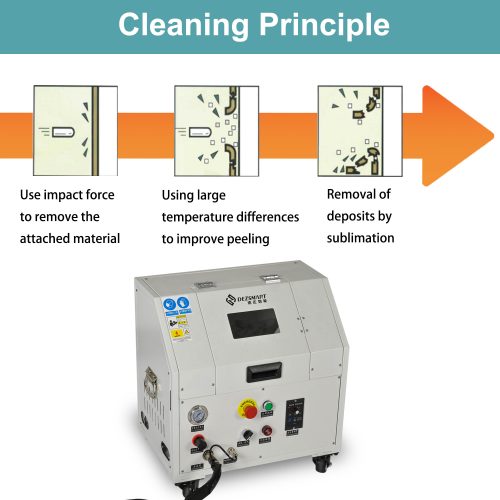

The DEZ-C1650 cleans through three synergistic effects, ensuring thorough decontamination:

Mechanical Impact: Dry ice particles are propelled at speeds up to 150m/s from the cleaning gun, physically dislodging surface contaminants upon impact.
Low-Temperature Freezing: At -78.5°C, dry ice instantly freezes and embrittles pollutants (e.g., grease, adhesives), making them easier to detach—especially effective on hot molds.
Sublimation Explosion: When dry ice contacts the surface, it sublimates rapidly, expanding its volume by 800 times. This explosive expansion creates a micro-shockwave that peels contaminants away from the surface, leaving no trace.

The process is adjustable: spray pressure (0.1~0.8Mpa) and dry ice output (0.1-0.6KG/min) can be fine-tuned for different cleaning needs, with continuous spraying on the same area limited to 2 seconds to prevent temperature drops exceeding 20°C.

4. Vantagens do núcleo

Compared to traditional cleaning methods, the DEZ-C1650 stands out with unmatched benefits:

Non-Destructive Cleaning: Mohs hardness of 2 ensures no abrasion or damage to surfaces, tolerances, or machinery—unlike sandblasting or soda cleaning.
Zero Secondary Waste: Dry ice sublimates into CO₂, leaving no residue. No need for wastewater or debris disposal (unlike high-pressure water or chemical cleaning).
Eco-Friendly & Safe: Uses non-toxic CO₂, meeting USDA/FDA/EPA standards. Eliminates exposure to harmful chemicals (unlike solvent cleaning).
Dry Process: No moisture means no risk to electronics, wires, or switches. Reduces bacterial growth in food-grade environments (unlike water-based methods).
High Efficiency: Enables inline cleaning, cutting downtime by eliminating disassembly, cooling, or drying steps (unlike manual or traditional methods).
Cost-Saving Only the air compressor consumes power; no ongoing costs for cleaning medium disposal (dry ice sublimates naturally).
Versatility: Interchangeable nozzles and adjustable parameters (pressure, ice output) adapt to diverse tasks, from delicate electronics to heavy machinery.

5. Estrutura do produto

The DEZ-C1650 is engineered for durability, control, and compactness:

a.Key Parameters:

Power Supply: AC220V (50-60HZ)
Power: 0.25KW (energy-efficient)
Hopper Capacity: 5-10Kg (dry ice storage)
Dry Ice Spec: 140125250mm (≈5Kg per block)
Spray Output: 0.1-0.6KG/min (adjustable)
Dimensions: L590W400H515mm (compact design for tight spaces)
Weight: 50KG
Air Pressure: 0.1~0.8Mpa (adjustable for precision)

b.Control Features: Equipped with a user-friendly panel for real-time pressure monitoring, ice output adjustment, and a brushless motor for stable operation. The low-temperature ice pipe (1/2″) ensures efficient dry ice delivery.

6. caso de trabalho

The DEZ-C1650 delivers visible results across applications:

Mold Cleaning: A plastic injection mold contaminated with resin residues was cleaned in 5 minutes. Post-cleaning, the mold surface was free of buildup, reducing defect rates in subsequent production runs.
Boiler Cleaning: A industrial boiler with carbon deposits was treated using 0.4KG/min dry ice output at 0.6Mpa pressure. After 8 minutes, the boiler tubes showed restored heat transfer efficiency, with no damage to metal surfaces.
Limpeza de PCBA: Flux residues on electronic circuit boards were removed without damaging components—critical for maintaining conductivity and preventing short circuits.

The DezSmart DEZ-C1650 dry ice cleaning machine combines power, safety, and sustainability to solve industrial cleaning challenges. Whether you need to clean molds without disassembly, decontaminate electronics safely, or reduce downtime in production lines, it delivers unmatched efficiency and cost savings.

Ready to upgrade your cleaning process? Visit www.dezsmt.com to learn more or request a demo. Experience the future of industrial cleaning today.

model	DEZ-C1650
fonte de alimentação	AC220V（50-60HZ）
Power	0.25KW
Hopper capacity	5-10Kg
Dry ice capacity	140125250MM (About 5Kg)
Dry ice spray volume	0.1-0.6KG/min (adjustable)
Machine size/weight	L590W400H515（mm）/50KG
Ice pipeGTL	1/2 Low temperature dry ice
Gas flow/pressure	0.5-4.0³/min /0.1~0.8Mpa（adjustable）
Ingress Protection Level	IP55

Contacte-nos para obter uma proposta de preços
