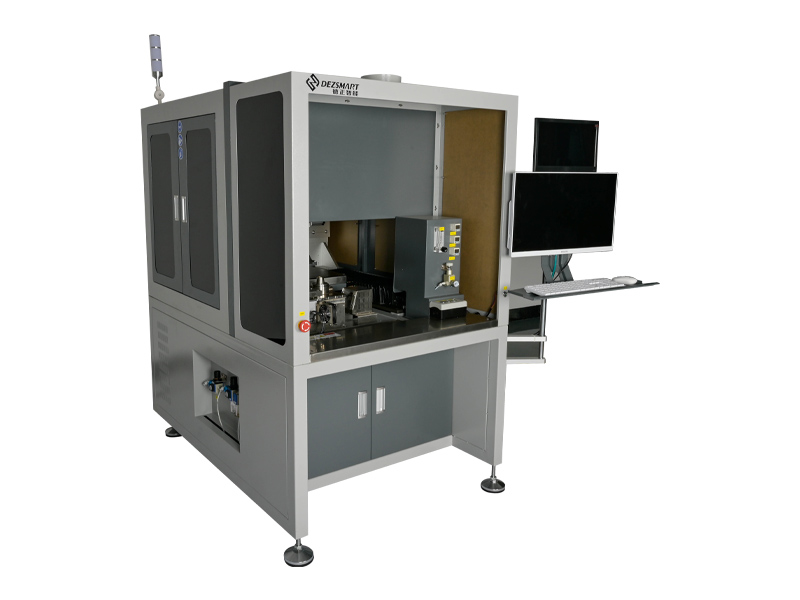

DEZ-H3600A Selective Wave Soldering Machine

Caratteristiche principali:
Compact and fully functional design for easy integration.
High welding quality with precise control.
Easy integration into production lines with flexible assembly.
Fully computer-controlled operation with parameter settings and storage.
Real-time monitoring and traceability for consistent results.
Modular design for easy maintenance and upgrades.

Scheda tecnica:
- Dimensioni:
– L1260mm * W1050mm * H1480mm (without base)
– General Power:
– Total Power: 5kw
– Operating Power: 1-3kw
– Power Supply: Simplex 220V 50HZ
– Net Weight: 450KG
– Air Source Requirements:
– Pressure: 3-5 Bars
– Flow: 8-12L/min
– Nitrogen Source Requirements:
– Pressure: 3-4 Bars
– Flow: More than 2 cubic meters per hour
– Purity: ¡Ý99.998%
– Exhaust Requirements:
– Required Exhaust: 500-800CMB/H
- Specifiche PCB:
– Carrier/fixture: Can be used as needed
– Maximum Solder Area: L300 * W300MM (customizable size)
– PCB Thickness: 0.2mm—–6mm
– PCB Edge: ¡Ý3mm
– Control System:
– Industrial PC
– Loading/Unloading: Manual
– Operating Height: 900+/-30mm
– PCB Conveyor Up Clearance: 50mm
– PCB Conveyor Bottom Clearance: 30mm
– Motion Axes: *, Y, Z
– Motion Control: Servo control
– Position Accuracy: ±0.1 mm
– Chassis: Steel structure welding
– Flux Management: Flux nozzle, jet valve, flux tank capacity 1L
– Preheat: Lower infrared preheating, heater¡¯s power 3kw, temperature range 25-240℃
– Solder Pot: Standard pot, 15 kgs/pot, solder temperature range PID, melting time 60-90 minutes, max solder temperature 350℃, solder heater 1.2kw
– Solder Nozzle: Wave soldering nozzle, customized shapes, material alloy steel, standard equipped nozzle 5 pcs/furnace (inner diameter 4mm * 3pcs, 5mm, 6mm)
– Nitrogen Management: Yes, Nitrogen PID Control 0 – 350℃, Nitrogen consumption 1-2m3/hour/nozzle
