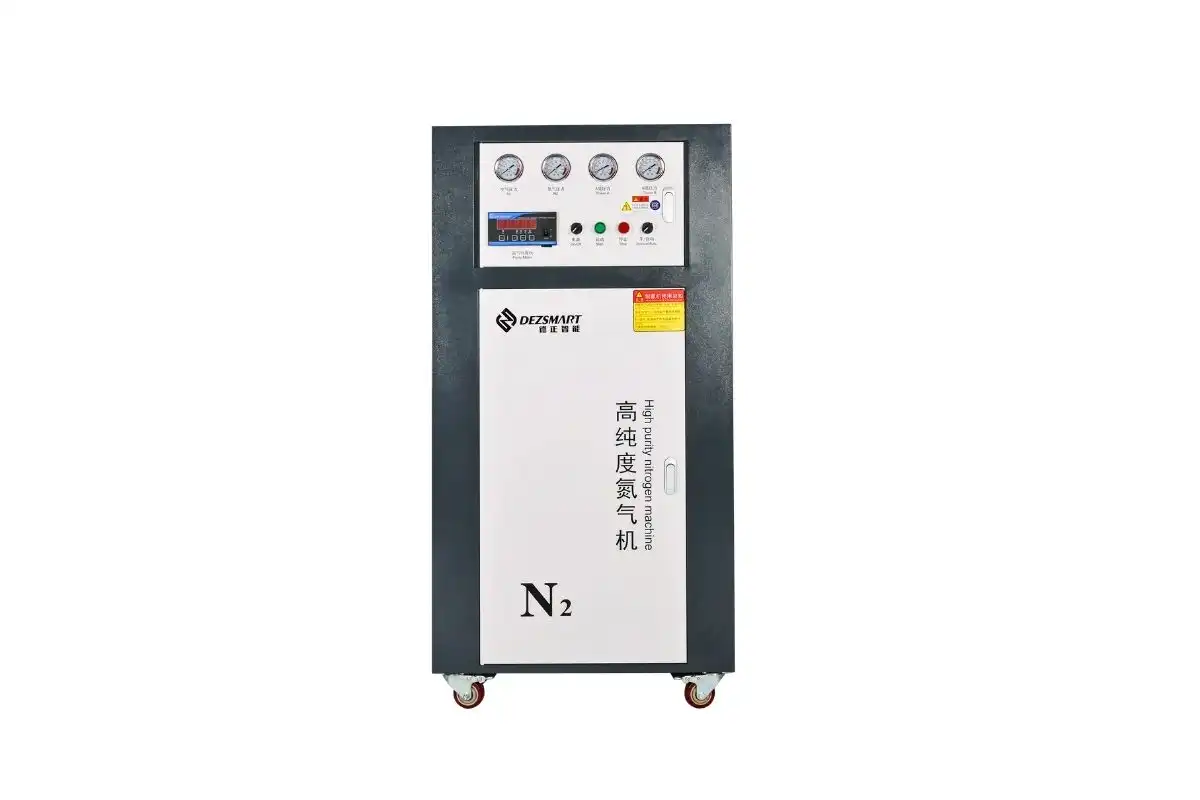

DEZ-D59-2N Nitrogen Generator
The DEZ-D59-2N is a nitrogen generator designed to produce high-purity nitrogen gas. It uses advanced gas separation technology to provide a reliable and efficient source of nitrogen for various industrial applications.
Especificaciones
Características principales:
High nitrogen purity with real-time online digital display.
Compact and fully functional design for easy integration.
Fully computer-controlled operation with parameter settings and storage.
Suitable for various industries requiring high-purity nitrogen.
Energy-efficient operation with low maintenance requirements.
Ficha técnica:
– Model: DEZ-D59-2N
– Standard Flow: 2Nm3/h
– Nitrogen Purity: 99.999%
– Nitrogen Pressure: 0.1-0.65Mpa (adjustable)
– Nitrogen Highest Pressure: 0.8Mpa (other customizations available)
– Working Voltage: AC220V:50Hz-60Hz (other customizations available)
– Device Power: 200W/0.2KW
– Dimensions: 9504101260mm (other customizations available)
– Nitrogen Temperature: ≤10-25℃ (based on ambient temperature)
– Nitrogen Dew Point: ≤-40℃ (requires pure compressed air)
– Nitrogen Oil Content: ≤0.002PPM
– Nitrogen Dust Particles: ≤0.01PPM (other customizations available)
– Raw Air Pressure: 0.6-0.8Mpa
– Raw Air Dew Point: ≤-10℃
– System Pressure Drop: ≤0.15Mpa
– Maximum Pressure Loss: ≤0.18Mpa
– Operating Environment: -10℃-50℃
